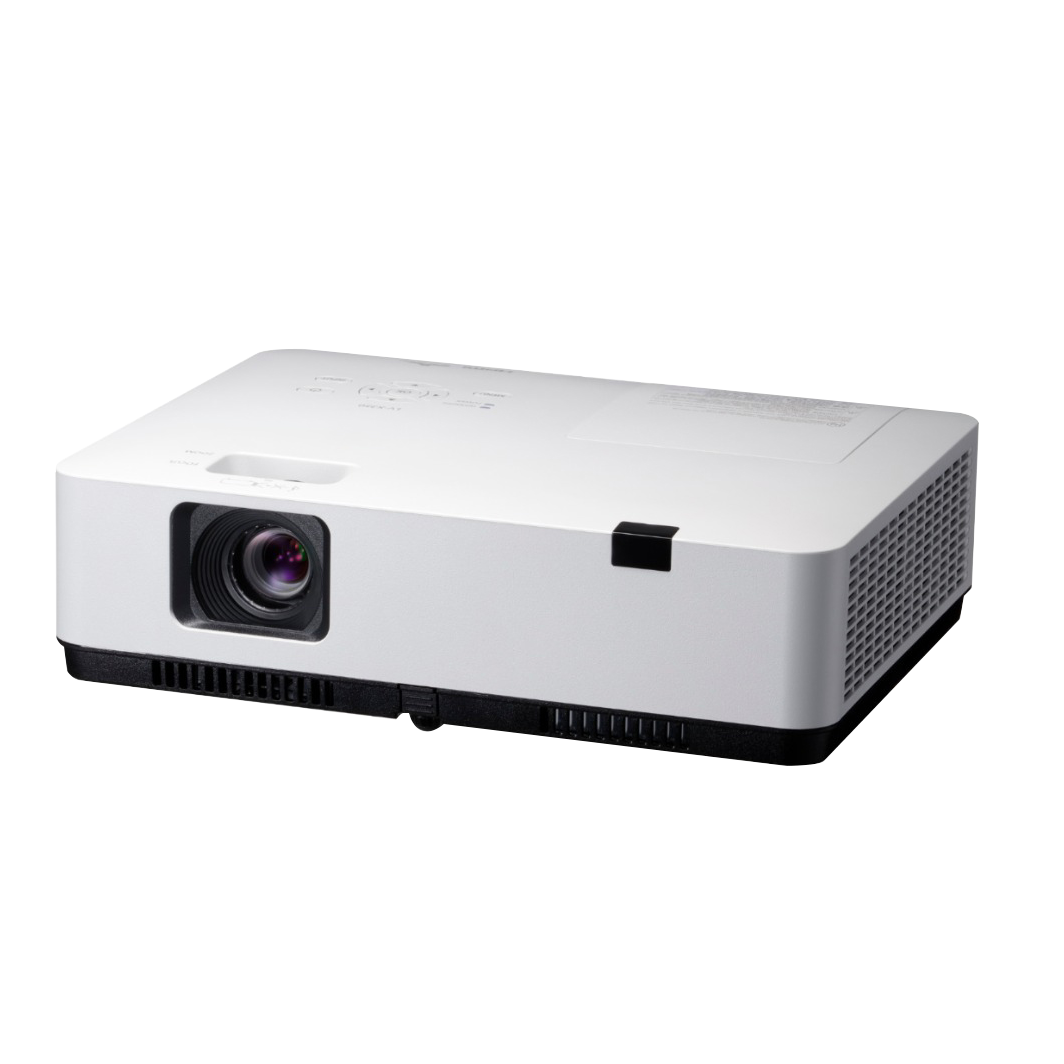

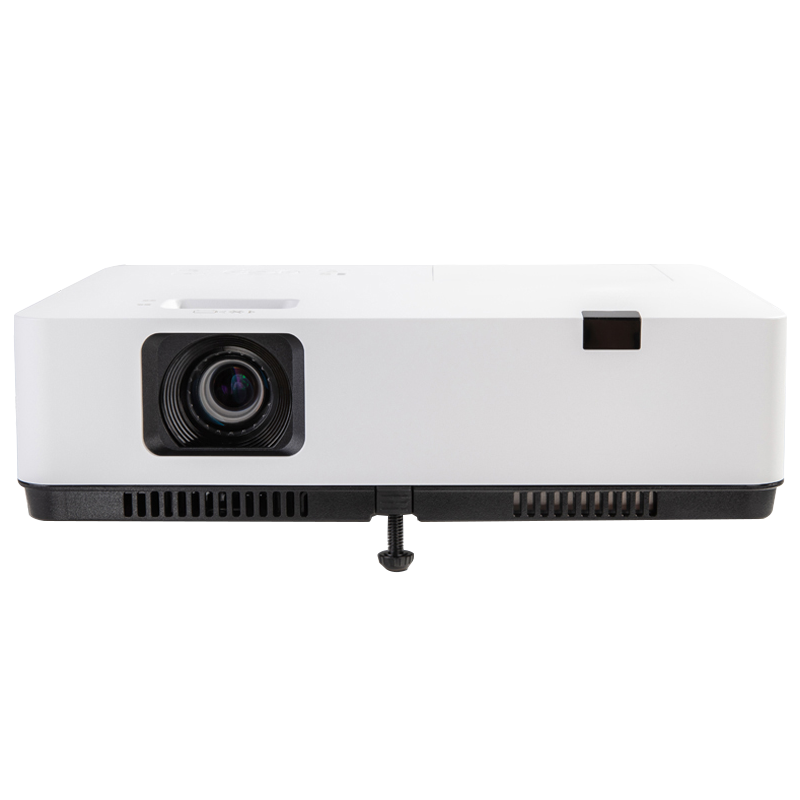

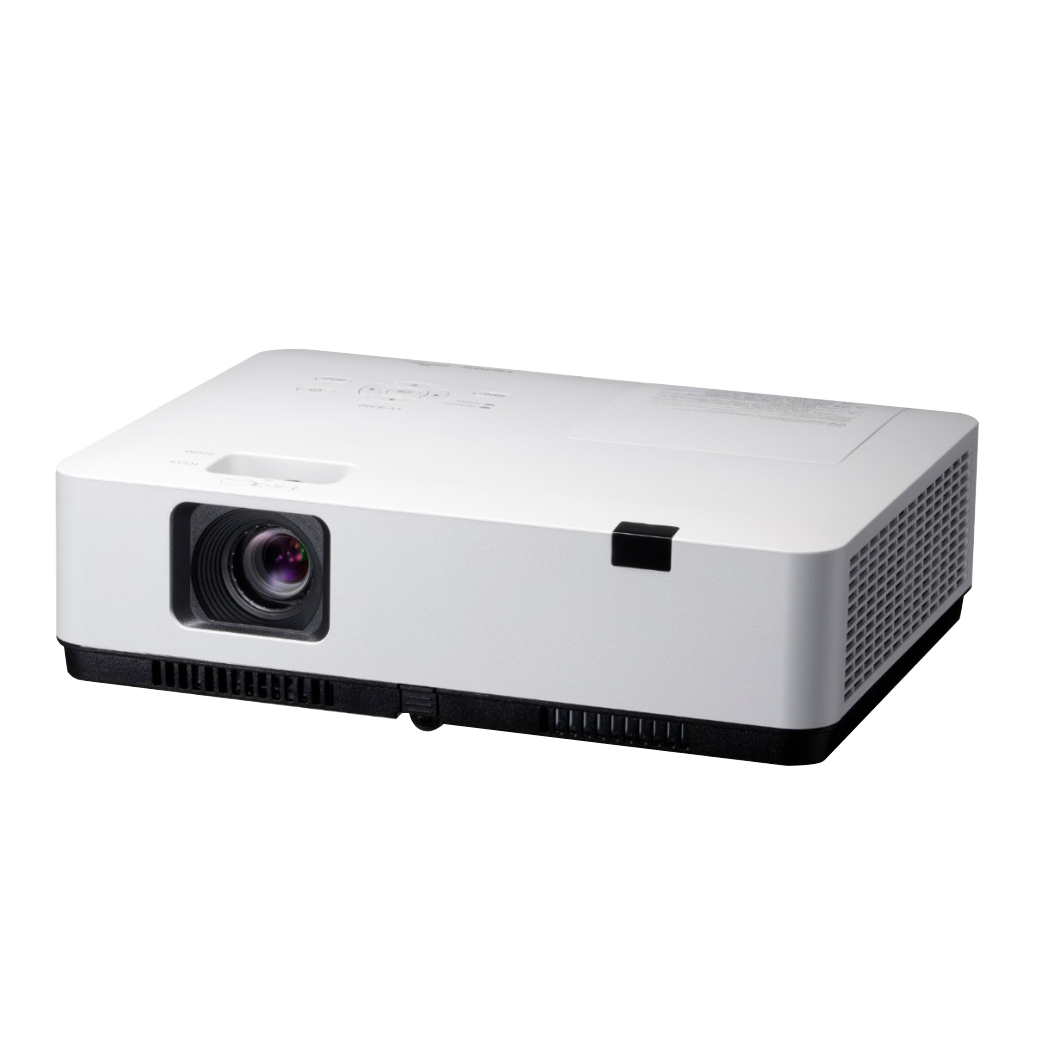

3500 Lumens XGA LCD Projectors MX-L352X

MX-L352X
Brightness: 3500 lm
Resolution XGA
Contrast 20,000:1
Lamp up to 20,000 Hours
Availability:
Quantity:
  • MX-L352X

  • SMX

MX-L352X
Resolution XGA up to WUXGA
Brightness 3500 lm
Contrast 20,000:1
Lamp up to 20,000 Hours

Outstanding Performance in a Compact Body

High Brightness, Contrast ratio, display Color

Brightness can reach up to 3500 lumens, This series is completely equipped with 20000:1 ratio, high color display   1.07 Billion . Even in standard daylight classroom & meeting rooms, presentation brightness is guaranteed to deliver vivid moving colors.


Extra Long life Lamp

High quality long life lamps. These series delivers well engineered lamp type that could last up to 20,000 hours. Effectively reduce extra maintenance cost on lamp replacements.


Super-Fast Start Up and shut down

Zero second Flash start & shut mode kills waiting time and more business matters.


Power-trip protection safety feature

The series comes with short circuit protection feature that anticipate unexpected power cut. Given this ability, it protects expensive components boards and lamp safety.


Vertical – Horizontal Keystone correction

The Keystone correction feature allow image to merge to scale onto any projector screen.


Automatic picture correction feature
 Auto sensing feature allow ceiling hanged projector to auto flipped a direct display. It provide no setup or any prior installation knowledge.
Multiple inputs feature

2 * sets HDMI, 1 * sets VGA inputs, USB – A USB-B, VIDEO input. Across all format and platforms, users of any setup can install with ease.


USB Reader, Wireless connectivity

With a USB-A input, can read the data from the USB disk directly, USB-B support wireless connection with projection equipment.


Quick snap lamp & Filter replacement design

Design with ceiling installation in mind, projector Users without much training could replace the lamp or filter in a snap. Maintenance can be more regular and with ease by any facility officers.


Remote Access Health Check

Through RJ45 Internet access, you could get access to your projector. Projector allows status notifications in any unexpected events. It is ready to send an email to notify you of any maintenance care it required.


Compatibility Support

Projectors is built to mix with its class of equipment. It support PJLINK, CRESTRON-ROOMVIEW, and AMX-DISCOVERY via internet command systems. Its blends into system and work seamlessly with other brands projectors.


ESD Anti Dusting feature
Equipped with high efficient electrostatic dusting functions within the projector, it keeps the LCDs and lenses dust free from any environment.



ModelMX-L352X
Display Technology(Liquid Crystal Display) LCD panel (x 3, R/G/B)
LCD PanelsSONY 3*0.63
Brightness3500 lumens
ResolutionXGA (1024*768)
Contrast20000:1
LensF1.6~1.76, f=19.158~23.018mm (1.2x) optical zoom
Uniformity90%
Throw ratio1.48~1.78:1 (70" @ 2.1m)
Aspect ratio4:3 support 16:9
Projection distance0.90m~11m
Projection size30:300 inch
Lamp power225w
Lamp lifeNormal 10000 hrs. Economic 20000 hrs.
Input2*HDMI1.4, 1-VGA, 1*Audio 3.5 Mini-Jack
1*Video, USB-A (Support memory viewer/optional Wi-Fi dongle)
2-Audio-In (L/R), USB-B (Display), RJ45 (Display)
OutputVGA , Audio 3.5 Mini-Jack
ControlRS232, RJ45 (control), USB-B (display)
PC CompatibilityVGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA, Mac
Video CompatibilityPAL, SECAM, NTSC 4.43, PAL-M, PAL-N, 480i, 480p, 576i, 576p, 720p, 1080p and 1080i
Scanning FrequencyH: 15~100Khz , V: 48~85Hz
Keystone correctionV. ±30° (Auto/Manual) H. ±30°(Manual), Pincushion/Barrel Correction, Corner Keystone
Noise35 dB (lamp control: Normal), 30 dB (lamp control: Eco)
ProjectionFront, Rear, Desktop, Ceiling
Speakers10W*1
Power Consumption217 Watts
Power Supply100V - 240V @ 50 - 60Hz
Operating Temp.0°C - 40°C (Over 35°C Go to ECO Mode)
Storage Temp.-10°C - 55°C
OSD Languages26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak, Vietnamese, Thai, Persian
Dimensions34.5cm x 26.1cm x 9.9cm
Weight3.26Kg
Standard AccessoriesPower Cord, Remote Control, VGA Cable
Optional accessoriesReplacement lamp module, Wi-Fi display module, HDMI cable, Screen, Bracket
Other FeaturesOne Touch Lamp Replacement
Quick Power OFF
Customized Startup Logo
Auto Image Reverse
Build in Test Images
Corner Keystone
Powerful 10 Watts Speaker
HDMI Compatible with MHL
LAN Display
PC Less Presentation
Mirror Display with iOS/Android Devices Via USB Adapter
Color display 1.07 Billion
