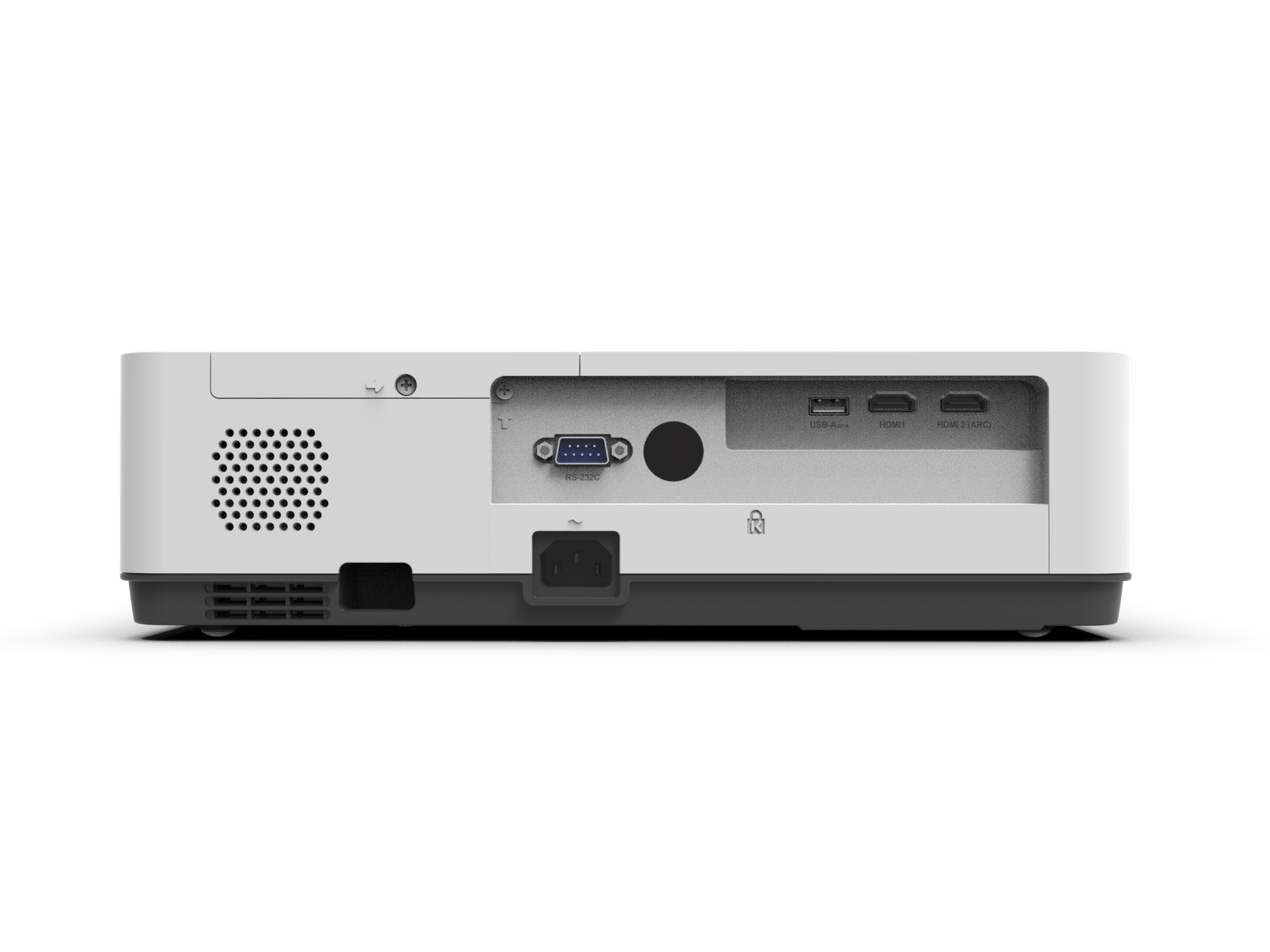

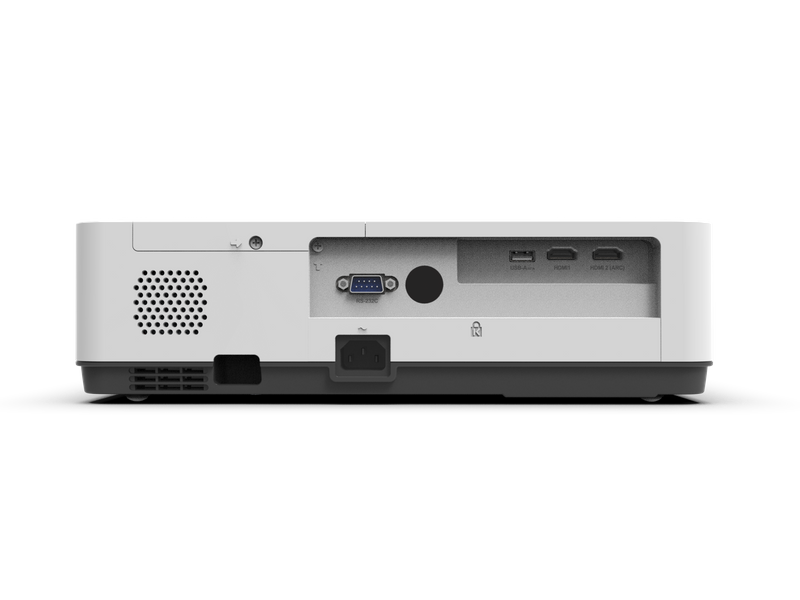

3LCD Projector 3500 lumens with XGA resolution for Business Education, MX-351XS

Birghtness: 3500lumens
Resolution: XGA
Display Technology: 3LCD
LCD Panels :SONY 3*0.63
Availability:
Quantity:
  • MX-351XS

  • SMX

MX-351XS

Resolution XGA(1024x768)
Brightness 3500 lumens
Contrast 15000:1
Lamp up to 20,000 Hours


DESCRIPTION

The SMX MX-351XS mobile multimedia projector is designed to provide high brightness for small-to-medium-sized businesses, education environments, corporate conference rooms, and mobility applications where heavy ambient light is present but the space requires a small projector. This lightweight model is affordable and has essential features, including high brightness and color output and high-contrast images.


•    3LCD technologies for optimized color output compared to DLP types

•    HDMI input connects you to high-definition sources

•    Image Care technology helps extend lamp life and lowers power consumption

•    Lightweight and practical



Model

Model No.MX-351XS
ResolutionXGA
Brightness
ISOBrightness
( Ansi Lumens )
3500
Overall   Spec
PanelDisplay Panel3x0.63”
Display TechnologyLiquid Crystal Display
Native ResolutionXGA (1024x768)
Projection LensZoom/FocusManual
Throw Ratio60"@1.8m;1.47~1.77:1
FF:2.1~2.25
ff=19.109~22.936mm
Zoom Ratio1.2x optics
Screen size0.887~10.899m(30"~300")
ContrastContrast Ratio(Min)15000:1 (w/o IRIS)
NoiseNoise(dB)@1mECO: 35dB
Normal: 38dB
UniformityUniformity(Actual Min)
-JISX6911
80%
ARAspect Ratio4:3 (Standard)/16:9(Compatible)
Terminal(I/O port)
InputHDMI*2
USB-A*1
ControlRS232*1
General Spec
AudioSpeakerN/A
Power ConsumptionPower Requeirements100~240V@ 50/60Hz
Power consumption(W)300
Power Consumption(ECO)250
ECO Standby Mode
Power Consumption
<0.5W
Cooling Set UpOperating Temp.5℃~40℃(35~   ECO)
Store Temp.-10℃~~50℃
Oparating Humidity20%~80%
High altitude0 to 3000 m
Other Functions
KeystoneKeystone CorrectionV: ±30°/ H:±30°
4 corner (Manual)
OSDLanguages9 Languages:
English / Chinese / Français / Español/ Português / 한국어 / Pусский   / Tiếng Việt / ﺏﺎﻠﻋﺮﺒﻳﺓ
Scanning FrequencyH-Synch Range15~100KHz
V-Synch Range48~85Hz
Display ResolutionComputer Signal InputVGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA, Mac
SW settingAuto SetupINPUT SEARCH
SuspendNo signal to   Poweroff
Picture modeDynamic、Standard、Cinema、Blackboard、Colorboard
Lamp modeNORMAL,ECO
Filter Cleaning Cycle200/500/1000 hours
Cooling time0S,60s
D-Zoom300%
OthersCustomizable multi-function keys
Dimension&Weight

MAX Dimensions
(WxHxD mm)
345*261*99
Net. Weight (KG)~3.1
Packaging
(WxHxD mm)
442*368*195
Gross. Weight (KG)4.5
Accessory

Standard AccessariesPower cord, HDMI   cable, Remote control
