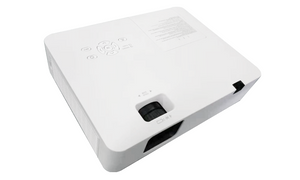

MX-351XS
SMX
High Brightness, Contrast ratio Brightness can reach 3500 lumens, This series is completely equipped with 800:1 ratio, high color display 1.07 Billion. Even in standard daylight classroom & meeting rooms, presentation brightness is guaranteed to deliver vivid moving colors. High quality long life lamps. These series delivers well engineered lamp type that could last up to 20,000 hours. Effectively reduce extra maintenance cost on lamp replacements. Zero second Flash start & shut mode kills waiting time and more business matters. The series comes with short circuit protection feature that anticipate unexpected power cut. Given this ability, it protects expensive components boards and lamp safety. The Keystone correction feature allow image to merge to scale onto any projector screen. | Multiple inputs feature 2 * sets HDMI input, 1 * set USB-A input, 1 * set RS232 control. Quick snap lamp & Filter replacement design Design with ceiling installation in mind, projector Users without much training could replace the lamp or filter in a snap. Maintenance can be more regular and with ease by any facility officers. Equipped with high efficient electrostatic dusting functions within the projector, it keeps the LCDs and lenses dust free from any environment. |
High Brightness, Contrast ratio Brightness can reach 3500 lumens, This series is completely equipped with 800:1 ratio, high color display 1.07 Billion. Even in standard daylight classroom & meeting rooms, presentation brightness is guaranteed to deliver vivid moving colors. High quality long life lamps. These series delivers well engineered lamp type that could last up to 20,000 hours. Effectively reduce extra maintenance cost on lamp replacements. Zero second Flash start & shut mode kills waiting time and more business matters. The series comes with short circuit protection feature that anticipate unexpected power cut. Given this ability, it protects expensive components boards and lamp safety. The Keystone correction feature allow image to merge to scale onto any projector screen. | Multiple inputs feature 2 * sets HDMI input, 1 * set USB-A input, 1 * set RS232 control. Quick snap lamp & Filter replacement design Design with ceiling installation in mind, projector Users without much training could replace the lamp or filter in a snap. Maintenance can be more regular and with ease by any facility officers. Equipped with high efficient electrostatic dusting functions within the projector, it keeps the LCDs and lenses dust free from any environment. |
Model | ||
Model No. | MX-351XS | |
Resolution | XGA | |
Brightness | ||
ISO | Brightness ( Ansi Lumens ) | 3500 |
Overall Spec | ||
Panel | Display Panel | 3x0.63” |
Display Technology | Liquid Crystal Display | |
Native Resolution | XGA (1024x768) | |
Projection Lens | Zoom/Focus | Manual |
Throw Ratio | 60"@1.8m;1.47~1.77:1 | |
F | F:2.1~2.25 | |
f | f=19.109~22.936mm | |
Zoom Ratio | 1.2x optics | |
Screen size | 0.887~10.899m(30"~300") | |
Contrast | Contrast Ratio(Min) | 15000:1 (w/o IRIS) |
Noise | Noise(dB)@1m | ECO: 35dB Normal: 38dB |
Uniformity | Uniformity(Actual Min) -JISX6911 | 80% |
AR | Aspect Ratio | 4:3 (Standard)/16:9(Compatible) |
Terminal(I/O port) | ||
Input | HDMI | *2 |
USB-A | *1 | |
Control | RS232 | *1 |
General Spec | ||
Audio | Speaker | N/A |
Power Consumption | Power Requeirements | 100~240V@ 50/60Hz |
Power consumption (W) | 300 | |
Power Consumption (ECO) | 250 | |
ECO Standby Mode Power Consumption | <0.5W | |
Cooling Set Up | Operating Temp. | 5℃~40℃(35~ ECO) |
Store Temp. | -10℃~~50℃ | |
Oparating Humidity | 20%~80% | |
High altitude | 0 to 3000 m | |
Other Functions | ||
Keystone | Keystone Correction | V: ±30°/ H:±30° 4 corner (Manual) |
OSD | Languages | 9 languages: English / Chinese / Français / Español/ Português / 한국어 / Pусский / Tiếng Việt / ﺏﺎﻠﻋﺮﺒﻳﺓ |
Scanning Frequency | H-Synch Range | 15~100KHz |
V-Synch Range | 48~85Hz | |
Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA, Mac |
SW setting | Auto Setup | INPUT SEARCH |
Suspend | No signal to Poweroff | |
Picture mode | Dynamic、Standard、Cinema、Blackboard、Colorboard | |
Lamp mode | NORMAL,ECO | |
Filter Cleaning Cycle | 200/500/1000 hours | |
Cooling time | 0S,60s | |
D-Zoom | 300% | |
Others | Customizable multi-function keys | |
Dimension&Weight | ||
MAX Dimensions (WxHxD mm) | 345*261*99 | |
Net. Weight (KG) | ~3.1 | |
Packaging Box Dimensions (WxHxD mm) | 442*368*195 | |
Gross. Weight (KG) | 4.5 | |
Accessory | ||
Standard Accessaries | Power cord, HDMI cable, Remote control |
