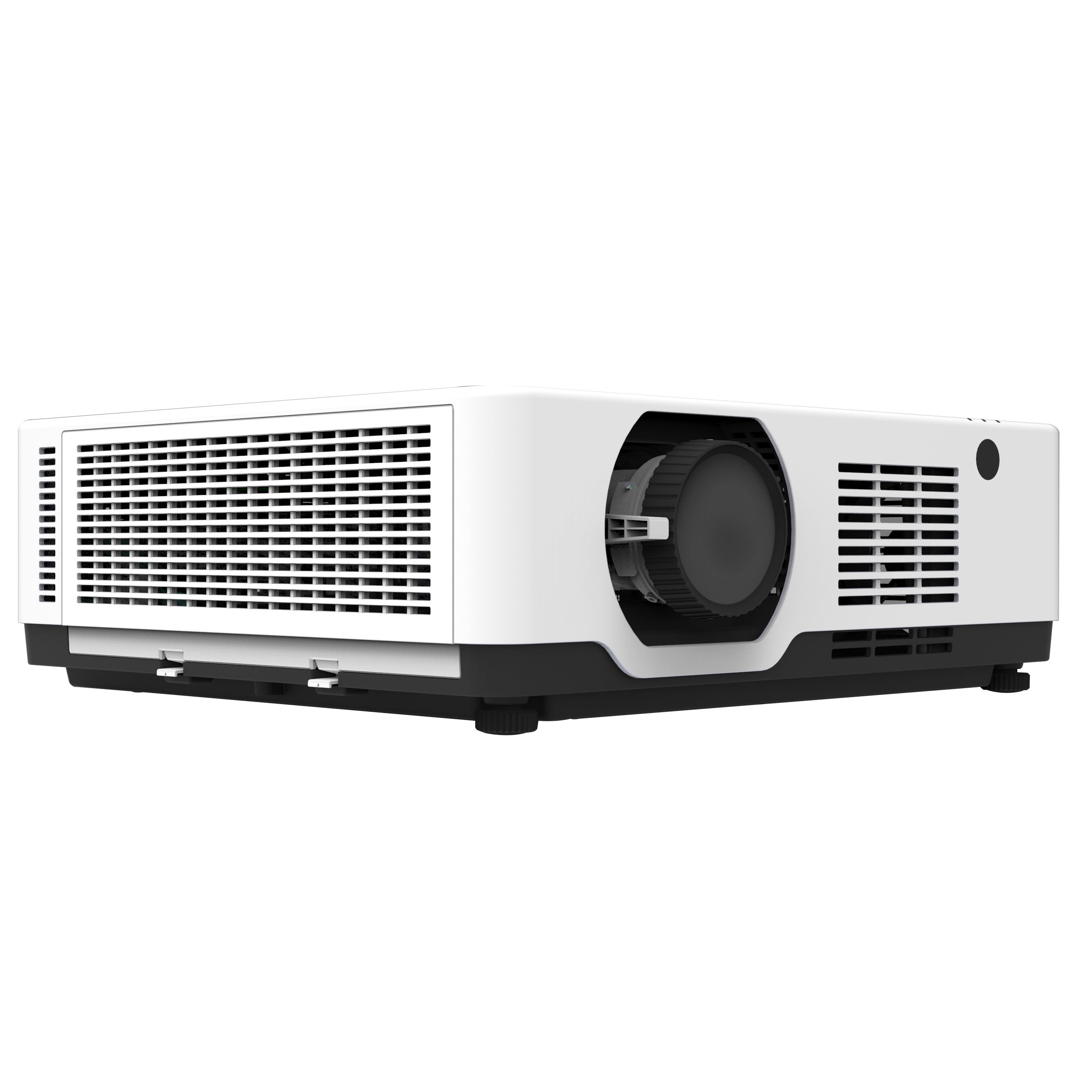

MX-VL650U
SMX
| Model | MX-VL650U | |
| Brightness | Brightness (Ansi Lumens) | 6500 |
| Overall Spec | ||
| Panel | Display Panel | 3x0.64” with MLA |
| Display Technology | Liquid Crystal Display | |
| Native Resolution | WUXGA(1920 x 1200) | |
| Light source Life time | FullNormal/Normal Model | 20000hrs |
| ECO1 Mode | 30000hrs | |
| ECO2 Mode | 30000hrs | |
| Projection Lens | Lens Vendor | RICOH Lens |
| F | 1.5~2.08 | |
| f | 17.2~27.7mm | |
| Zoom/Focus | Manual | |
| Throw Ratio | 1.2(wide)-2.0(tele) | |
| Zoom Ratio | 1.6 | |
| Screen Size | 30-300 inch | |
| Lens Shift | V:＋60%～0%、 H:±29% | |
| CR | Contrast Ratio | 5,000,000:1 |
| Noise | Noise(dB) | 38dB(Normal) 30dB(ECO1） 28dB(ECO2） |
| Uniformity | Uniformity | 80% |
| AR | Aspect Ratio | Native:16:10 Compatible: 4:3/16:9 |
| Terminal(I/O port) | ||
| Input | VGA | *1 |
| HDMI 1.4B(IN) | *2 | |
| USB-A | *1 | |
| USB-B | *1(Display) | |
| RJ45 | *1(Display) | |
| HD BaseT | *1(Optional) | |
| Audio in (mini jack,3.5mm) | *1 | |
| Output | VGA | *1 |
| Audio out (mini-jack,3.5mm) | *1 | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| USB-B | *1 (For upgrade) | |
| General Spec | ||
| Audio | Speaker | 16W*1 |
| Dust filter | W/Filter | |
| Filter Life time | 8000h | |
| Power Consumption | Power Requeirements | 100~240V@ 50/60Hz |
| Power Consumption (Normal) (Max) | 360 | |
| Power Consumption (ECO1) (Max) | 280 | |
| Power Consumption (ECO2) (Max) | 230 | |
| ECO Standby Mode Power Consumption | <0.5W | |
| Temp.&Humidity | Operation Temp. | 0 to 40°C |
| Operation Thumidity. | 20-85% | |
| Store Temp. | -10 to 50°C | |
| High Altitude | 0~3000m | |
| Other Functions | ||
| Keystone | Keyston Correction (Lens@center) | V: ±30° H: ±30° Pincushion/Barrel Correction 6 Corner Geometry correction 4 Corner Correction Grid image tune |
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi |
| LAN Control | LAN Control-RoomView (Crestron) | Yes |
| LAN Control- AMX Discovery | Yes | |
| LAN Control- PJ Link | Yes | |
| Scanning Frequency | H-Synch Range | 15~100KHz |
| V-Synch Range | 24~85Hz | |
| Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA, 4K@30Hz |
| Video Signal Input | 480i, 480p, 576i, 576p, 720p, 1080i and 1080p | |
| SW setting | Auto Setup | INPUT SEARCH, AUTO PC, Auto Keystone |
| Blank | Yes | |
| Suspend | Yes(5miniutes no singnal as default) | |
| Picture Model | Dynamic, Standard, Cinema, Colorboard, sim-DICOM , Blackboard(Green) | |
| Cooling Time | 0s、normal、30s | |
| Auto Ceiling | Yes | |
| D-Zoom | 1~33 | |
| Others | 360° Projection | Yes |
| Dimension&Weight | ||
| MAX Dimensions (WxDxH mm) | 405(W)*358(D)*137(H) | |
| Net Weight (KG) | ~7.9 | |
| Packaging Size (WxDxH mm) | 510 (W)*498(D)*260(H) | |
| Gross.Weight (KG) | ~10.4 | |
| Accessory | ||
| Manual Languages | Chinese,English | |
| Standard Accessaries | Power cord(EU) /power cord(Ja),Remote contro | |
