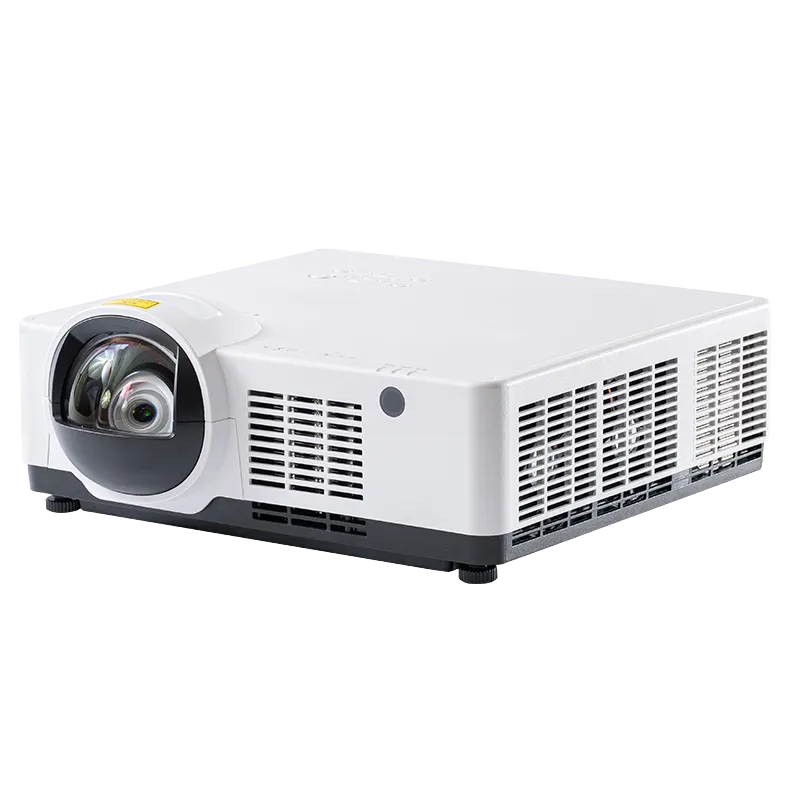

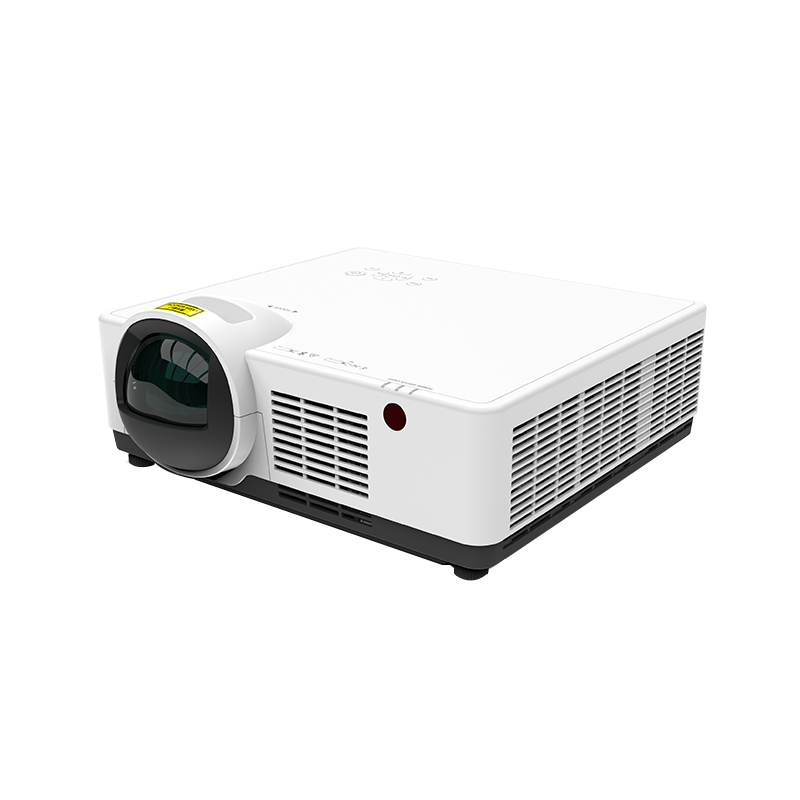

MX-SL600W
SMX
MX-SL600W
6000lumen
WXGA(1280x800)
5000000:1
3LCD Display Panel
30000 hours
16:10/16:9/4:3
Model | MX-SL600W | |
Brightness | ||
Brightness(Lumen) | 5500 | |
Overall Spec | ||
Panel | Display Panel | 3x0.64” with MLA |
Display Technology | Liquid Crystal Display | |
Native Resolution | WXGA (1280 x 800) | |
Light source Life time | Normal mode | 20000hrs |
ECO1 mode | 30000hrs | |
ECO2 mode | 30000hrs | |
Lens | Lens Vendor | RICOH |
Projection Lens | F | F1.6 |
f | 6.39mm | |
Zoom/Focus | Manual | |
Throw Ratio | 0.44:1 | |
Zoom Ratio | N/A | |
Screen size | 55-130 inch | |
Lens Shift | N/A | |
CR | Contrast Ratio (FOFO) | 5000000:1 |
Noise | Noise(dB) | TGT: 37dB (Normal) 27dB (ECO) |
Uniformity | Uniformity(Actual Min) -JISX6911 | 80% |
AR | Aspect Ratio | Native:16:10 Compatible: 4:3/16:9 |

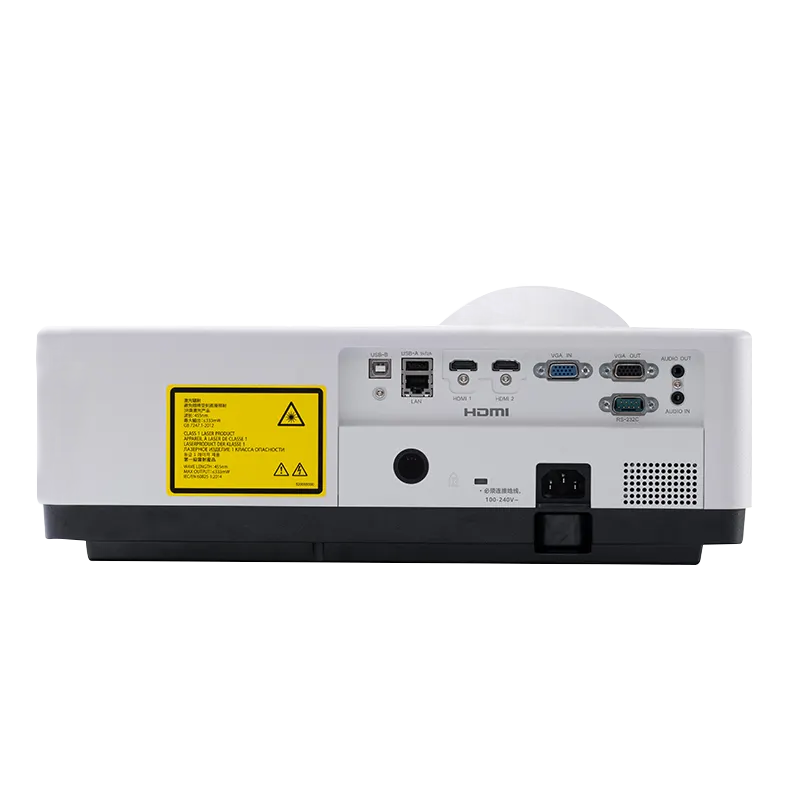

Terminal(I/O port) | ||
Input | VGA | *1 |
HDMI 1.4B(IN) | *2 | |
USB-A | *1 | |
USB-B | *1 (Display) | |
RJ45 | *1 (Display) | |
DVI-D | N/A | |
HD BaseT | *1 (Optional) | |
HD-SDI(3G-SDI) | N/A | |
Video | N/A | |
Audio in (mini jack,3.5mm) | *1 | |
Output | VGA | *1 |
HDMI 1.4B(OUT) | N/A | |
Audio out (mini-jack,3.5mm) | *1 | |
Control | RS232 | *1 |
RJ45 | *1 (Control) | |
USB-B | *1 (For upgrade) | |
Wired Remote(IN) | N/A | |
Wired Remote(OUT) | N/A | |
General Spec | ||
Audio | Speaker | 16W*1 |
Dust filter | W/Filter | |
Filter Life time | 8000h | |
Power Consumption | Power Requeirements | 100~240V@ 50/60Hz |
Power Consumption (Normal) (Max) | 350 | |
Power Consumption (ECO1) (Max) | 270 | |
Power Consumption (ECO2) (Max) | 230 | |
ECO Standby Mode Power Consumption | <0.5W | |
Temp.&Humidity | Operating Temp. | 0 to 40°C |
Operating Thumidity. | 20-80% | |
Store Temp. | -10 to 50°C | |
High altitude | 0~3000m | |
Other Functions | ||
Keystone | Keystone Correction (Lens@center) | V: ±15° H:±15° Pincushion/Barrel Correction 6 Corner Geometry correction 4 Corner Correction Grid image tune |
OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi |
LAN Control | LAN Control-RoomView (Crestron) | Yes |
LAN Control-- AMX Discovery | Yes | |
LAN Control-- PJ Link | Yes | |
Scanning Frequency | H-Synch Range | 15~100KHz |
V-Synch Range | 24~85Hz | |
Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz |
Video Signal Input | 480i, 480p, 576i, 576p, 720p, 1080i and 1080p | |
SW setting | Auto Setup | INPUT SEARCH,AUTO PC,Auto Keystone |
Blank | Yes | |
Suspend | Yes(5miniutes no singnal as default) | |
Picture mode | Dynamic, Standard, Cinema, Colorboard, sim-DICOM, Blackboard(Green) | |
Cooling time | 0s, Normal,30s | |
Closed caption | N/A | |
Auto Ceiling | Yes | |
D-Zoom | 1~33 | |
Others | 360° projection | Yes |
Edge Blending | N/A | |
Wireless display (Optional) | SmartPhone: Android:Install APK for Android iphone: Airplay function PC: Support WiFi Display@Windows&MAC system through dongle | |
Dimension&Weight | ||
MAX Dimensions (WxHxD mm) | 405(W)×404(D)×164(H) | |
Net. Weight (KG) | 8.1kg | |
Packaging Box Dimensions (WxHxD mm) | 510(W)×498(D)×260(H) | |
Gross. Weight (KG) | ~10.4KG | |
Accessory | ||
Manual Languages | Chinese,English | |
Standard Accessaries | Power cord (EU)/power cord (Ja) Remote control&RC Battery | |
Regulation List | ||
China | CCC | √ |
WW | CB | √ |
US | cTUVus | √ |
FCC | √ | |
FDA | √ | |
EU | CE-EMC | √ |
CE-LVD | √ | |
CE-ERP | √ | |
Laser Security Level | class1 | √ |
EMC Class | ||
EMC Class | Class A@3dBm |
