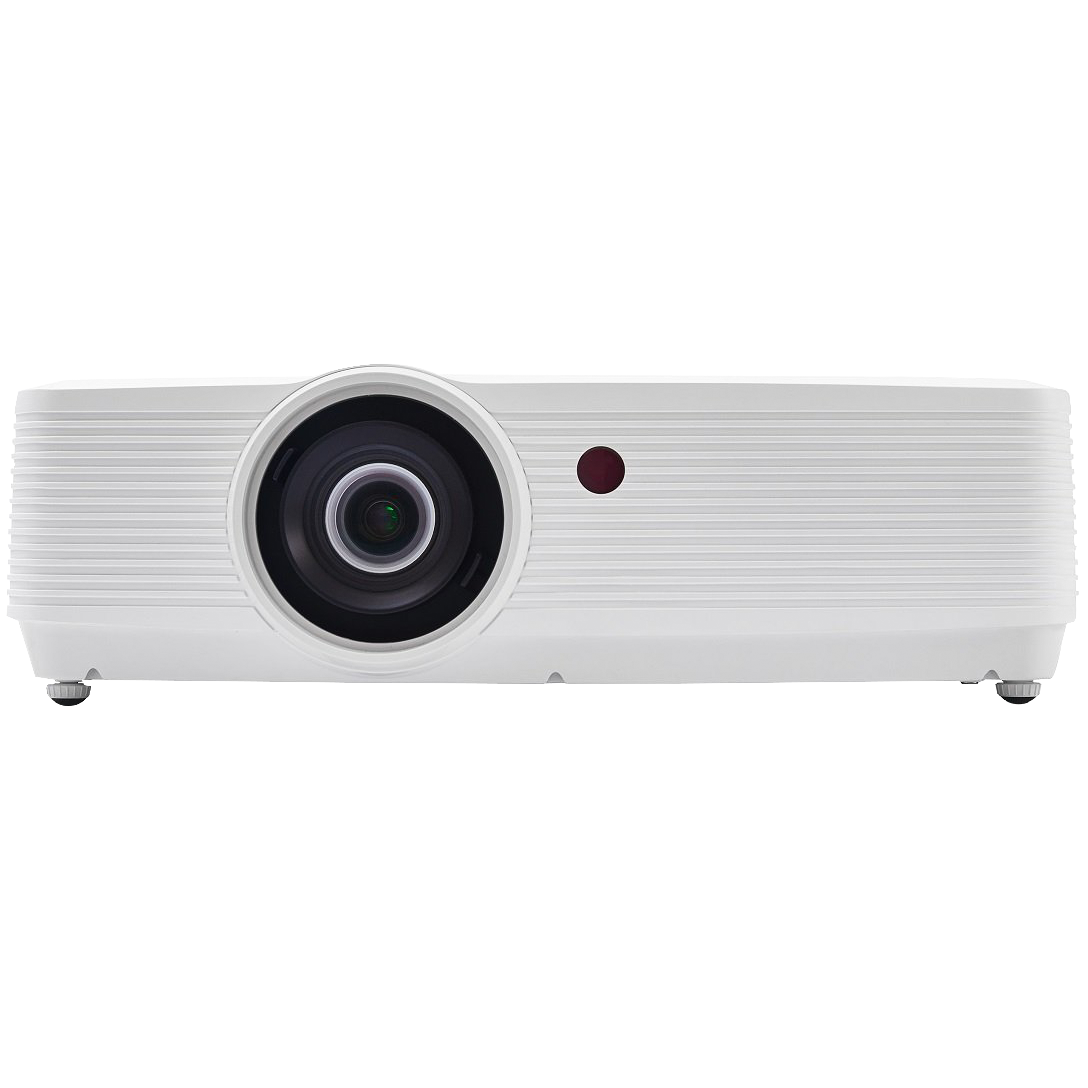

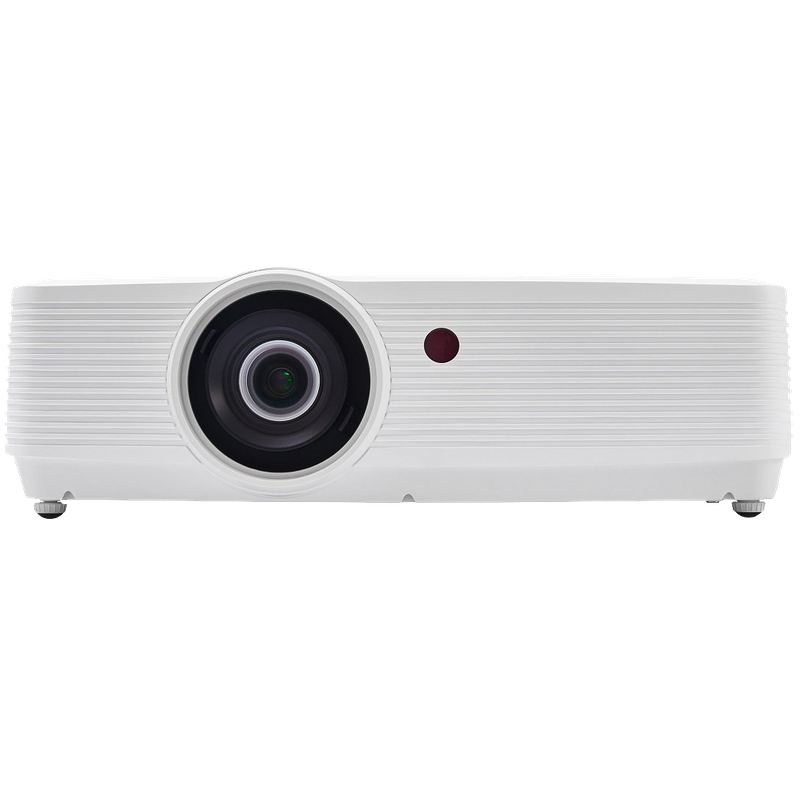

MX-LS6000U
SMX
| Model | MX-LS6000U | |
| Key parts | ||
| Panel | LCX202A-(B12 DML) | |
| Lens | F1.65x1.6 | |
| Lamp | USHIO:300W | |
| PW IC | Topaz:PWC878 | |
| Sony IC | CXD3553+CXA3832 | |
| Brightness | ||
| ISO标准 | Brightness (Marketing) ( Ansi Lumens ) | 6000 |
| Brightness （Typ） ( Ansi Lumens )-90% | 5400 | |
| Brightness （Min） ( Ansi Lumens )-80% | 4800 | |
| Overall Spec | ||
| Panel | Display Panel | 3x0.64” （DML） |
| Display Technology | Liquid Crystal Display | |
| Native Resolution | WUXGA (1920 x 1200) | |
| Lamp | Lamp Consumption(W) | USHIO:300W |
| Lamp Lifetime(H) | 3000H(Normal) / 4000H(ECO) | |
| Projection Lens | Zoom/Focus | Manual |
| Throw Ratio | 70"@1.952m; 1.29~2.11 : 1 | |
| F | F 1.65~2.25 | |
| f | f= 18.20~29.38mm | |
| Zoom Ratio | 1.6xoptics | |
| Screen size | 1.103m~13.705m (40''~300") | |
| Lens Shift V | ±45%(Manual) | |
| Lens Shift H | ±10%(Manual) | |
| CR | Contrast Ratio(Min) | 15000:1（with IRIS&ECO mode） |
| Noise | Noise(dB)@1m | ECO : MAX 33.5dB Normal : 41dB; |
| Uniformity | Uniformity(Actual Min) -JISX6911 | 80% |
| AR | Aspect Ratio | 16:10 (Standard)/4:3 (Compatible) |
| Terminal(I/O port) | ||
| Input | VGA | *2 |
| Audio in （mini jack,3.5mm） | *1 | |
| YCbCr/Component | *1(share with VGA in 1) | |
| Video | *1 | |
| Audio in（L/R） --RCA | *2 | |
| S-Video | *1(share with VGA in1) | |
| HDMI | *2(One is Compatible with MHL) | |
| USB- A | *1 1. Support Memeory viewer 2. WiFi Dongle (Optional Accessory) | |
| USB-B | *1（Display） | |
| RJ45 | *1（Display） | |
| Output | VGA | *1（Share with VGA IN 2) |
| Audio out （mini-jack,3.5mm） | *1 | |
| 12V trigger | N/A | |
| Other Interface | N/A | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| USB-B | *1(for up-grade) | |
| General Spec | ||
| Audio | Speaker | 1*10W |
| Power Consumption | Power Requeirements | 100~240V@ 50/60Hz |
| Power Consumption -Normal | ~410W | |
| Power Consumption -ECO | ~287W | |
| ECO Standby Mode Power Consumption | <0.5W | |
| Network standby Power Consumption | <3W | |
| Temp.&Humidity | Operating Temp. | 0℃~40℃(35~ ECO) |
| Store Temp. | -20℃~~60℃ | |
| Oparating Humidity | 20%~85% | |
| Storage Humidity | 10%~85% | |
| Mechanical Design | Security bar | Yes |
| Password protections | Yes | |
| Control Panel Lock | Yes | |
| Kenginston Lock | Yes | |
| Ventilation (In/Ex) | Side/Side | |
| Lamp access | Top | |
| Filter access | Side | |
| Dust filter | ESD filter(静电） | |
| Accessory | ||
| Keystone | Keystone Correction | V: ±30°（auto+manual） H：±15°（manual） Corner Keystone |
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korea, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi |
| LAN Control | LAN Control-RoomView (Crestron) | Yes |
| LAN Control-AMX Discovery | Yes | |
| LAN Control-PJ Link | Yes | |
| Scanning Frequency | H-Synch Range | 15~100KHz |
| V-Synch Range | 48~85Hz | |
| Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,Mac, |
| Video Signal Input | PAL, SECAM, NTSC 4.43, PAL-M, PAL-N, PAL-60, 480i, 480p, 576i, 576p, 720p, 1080p and 1080i | |
| Others | Auto Setup | INPUT SEARCH,AUTO PC, AUTO Keystone |
| Audio muting(Muting) | Yes | |
| Suspend | Yes(5miniutes no singnal as default) | |
| Picture mode | Dynamic、Standard、Cinema、 Blackboard、Colorboard | |
| Lamp mode | NORMAL,ECO | |
| Filter Cleaning Cycle | 100/200/300 hours | |
| Cooling time | 0S,60s,90s | |
| Closed caption | Yes | |
| High altitude | Yes(1400~2700m) | |
| Signal Power On | Yes | |
| Turn on countdown | Customized-(0S,10S, 30S..) | |
| Auto Ceiling | Yes | |
| D-Zoom | 1~16 | |
| Dimension&Weight | ||
MAX Dimensions (WxHxD mm) | 395*318*128 | |
| Net. Weight (KG) | 4.45 | |
Packaging Box Dimensions (WxHxD mm) | 495*440*230 | |
| Gross. Weight (KG) | 6 | |
| Accessory | ||
| Manual Languages | Chinese, English | |
| Standard Accessaries | Power cord, VGA cable,Remote control& RC Battery | |
| Regulation List | ||
| China | Safety and EMC | CCC |
| 节能环保 | CECP | |
| 能效 | CEL | |
| USA/Canada | Safety | cTUVus |
| CB | ||
| EMI | FCC | |
| E.U | EMC | CE |
