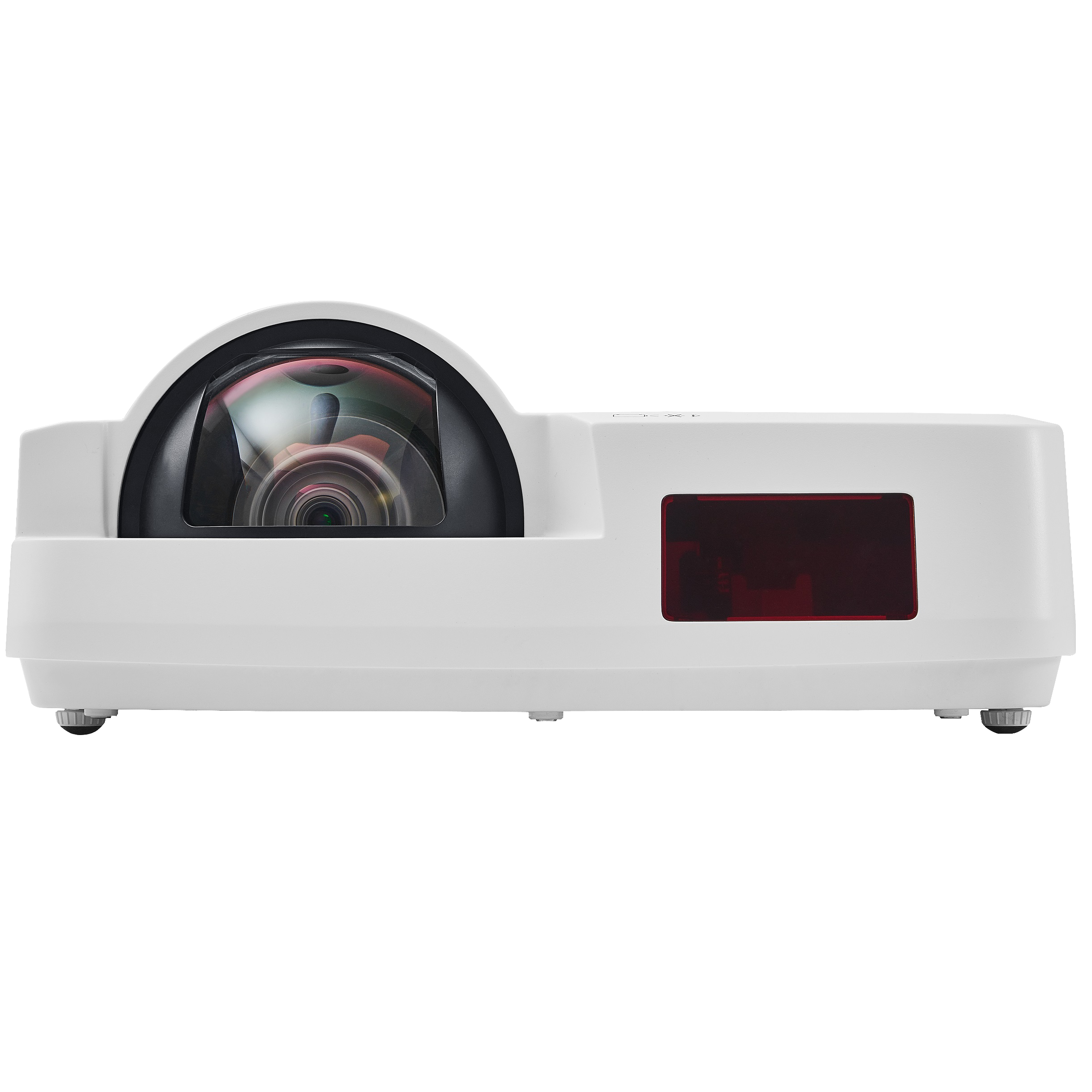

Short Throw Projector MX-L3700WT 37000 Lumens WXGA 15000:1

Availability:
Quantity:
  • MX-L3700WT

  • SMX

MX-L3700WT

  • LCD Technology

  • Screen size 80" @75cm

  • WXGA, 3700lms, Dual HDMI

  • Vertical & Horizintal & Carve & Corner Keystone

  • MHL, LAN/USB Display

  • Contrast 1:15000

  • Lamp up to 10000h

    DESCRIPTION
    Seamlessly present to your audience using the SMX MX-L3700WT, an XGA, value-driven, and eco-friendly super short-throw projector. This model delivers an ideal short-throw distance solution for education and corporate applications, and offers 3700 lumens to deliver remarkably bright images. With advanced HDMI connectivity, the MX-L3700WT benefits users requiring a maintenance-free design and environmentally conscious features.

    Short-throw lens eliminates shadows on the screen along with the projected light in the presenter's eyes created by traditional front projection systems
    Sony BrightEra technologies for optimized color output compared to DLP types
    HDMI input connects you to high-definition sources
    Variable audio-out allows the remote control to adjust the volume of self-powered external speakers connected to the projector
    ImageCare technology helps extend lamp life and lowers power consumption
    Integrated RJ-45 and/or wireless LAN (optional) quickly connects to the LAN for control or image transmission
    Dual computer inputs ensure quick switching between presentations
    Easy MHL connection with your smart devices. HDMI/MHL cable
    Networkable management with Crestron/AMX/PJLink
    Corner keystone to meet versatile installation events
    PC less presentation for PDF, JPEG, BMP, and most AV formats through. USB-A

    ※ Powerful 10 Watts sound system



Main Specification

 Model No.MX-L3700W
Brightness(Lumen)3700
Optical Data
PanelDisplay Panel3x0.59”
Display TechnologyLiquid Crystal Display
Native ResolutionWXGA (1280 x 800)
LampLamp Consumption(W)Philips:218W
Lamp Lifetime(H)4000H(Normal) /10000H(ECO)
Projection LensZoom/FocusManual
Throw Ratio80"@0.79m; 0.46 : 1
FF=1.8
ff=6.08mm
Screen size0.484~1.004m(50"~100")
CRContrast Ratio(Min)10000:1(with IRIS&ECO mode)
NoiseNoise(dB)@1mECO: MAX 34.9dB;
Normal: 38.9dB
UniformityUniformity(Actual Min)
-JISX6911
80%
ARAspect Ratio16:10 (Standard)/4:3(Compatible)
Terminal (I/O port)
InputVGA*2
Audio in
(mini jack,3.5mm)
*1
YCbCr/Component*1(share with VGA in 1)
Video*1
Audio in(L/R)--RCA*2
S-Video*1(share with VGA in1)
HDMI*2(One is Compatible with MHL)
USB- A*1
1. Support Memory viewer
2. WiFi Dongle (Optional Accessory)
USB- B*1(Display)
RJ45*1(Display)
OutputVGA*1(Share with VGA IN 2)
Audio out
(mini-jack,3.5mm)
*1
ControlRS232*1
RJ45*1 (Control)
USB-B*1(for up-grade)
General Spec
AudioSpeaker1*10W
Power ConsumptionPower Requirements100~240V@ 50/60Hz
Power Consumption270W
ECO Standby Mode
Power Consumption
<0.5W
Network standby
Power Consumption
<3W
Temp.&HumidityOperating Temp.0℃~40℃(35~ ECO)
Store Temp.-20℃~~60℃
Operating Humidity20%~85%
Storage Humidity10%~85%
Mechanical DesignSecurity barYes
Password protectionsYes
Control Panel LockYes
Kenginston    LockYes
Ventilation (In/Ex)Side/Side
Lamp accessTop
Filter accessSide
Dust filterESD filter
Other Functions
KeystoneKeystone CorrectionV: ±15°(auto+manual)
H:±15°(manual)
Pincushion/Barrel Correction
Corner Keystone
OSD Languages26 languages: English, German, French, Italian, Spanish, Polish,   Swedish, Dutch, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian,   Hungarian, Czech, Kazakh, Vietnamese, Thai, Farsi
LAN ControlLAN Control-RoomView
    (Crestron)
Yes
LAN Control-AMX DiscoveryYes
LAN Control-PJ Link Yes
Scanning FrequencyH-Synch Range15~100KHz
V-Synch Range48~85Hz
Display ResolutionComputer Signal InputVGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA, Mac,
Video Signal InputPAL, SECAM, NTSC 4.43, PAL-M, PAL-N, PAL-60,
480i, 480p, 576i, 576p, 720p, 1080p and 1080i
SW settingAuto SetupINPUT SEARCH, AUTO PC, AUTO Keystone
Audio muting(Muting)Yes
SuspendYes(5miniutes no   singnal as default)
Picture modeDynamicStandardCinemaBlackboardColorboard
Lamp modeNORMAL, ECO
Filter Cleaning Cycle100/200/300 hours
Cooling time0S,60s,90s
Closed captionYes
High altitude Yes(1400~2700m)
Signal Power OnYes
Turn on the countdown Customized-(0S, 10S, 30S..)
Auto CeilingYes
D-Zoom1~16
Dimension&Weight

MAX Dimensions
    (WxHxD mm)
347*341*141
Net. Weight (KG)4
Packaging Size
    (WxHxD mm)
463*458*211
Gross. Weight (KG)5.5
Accessory

Manual LanguagesChinese, English, Korean
Standard AccessariesPower cord, HDMI cable, Remote control
