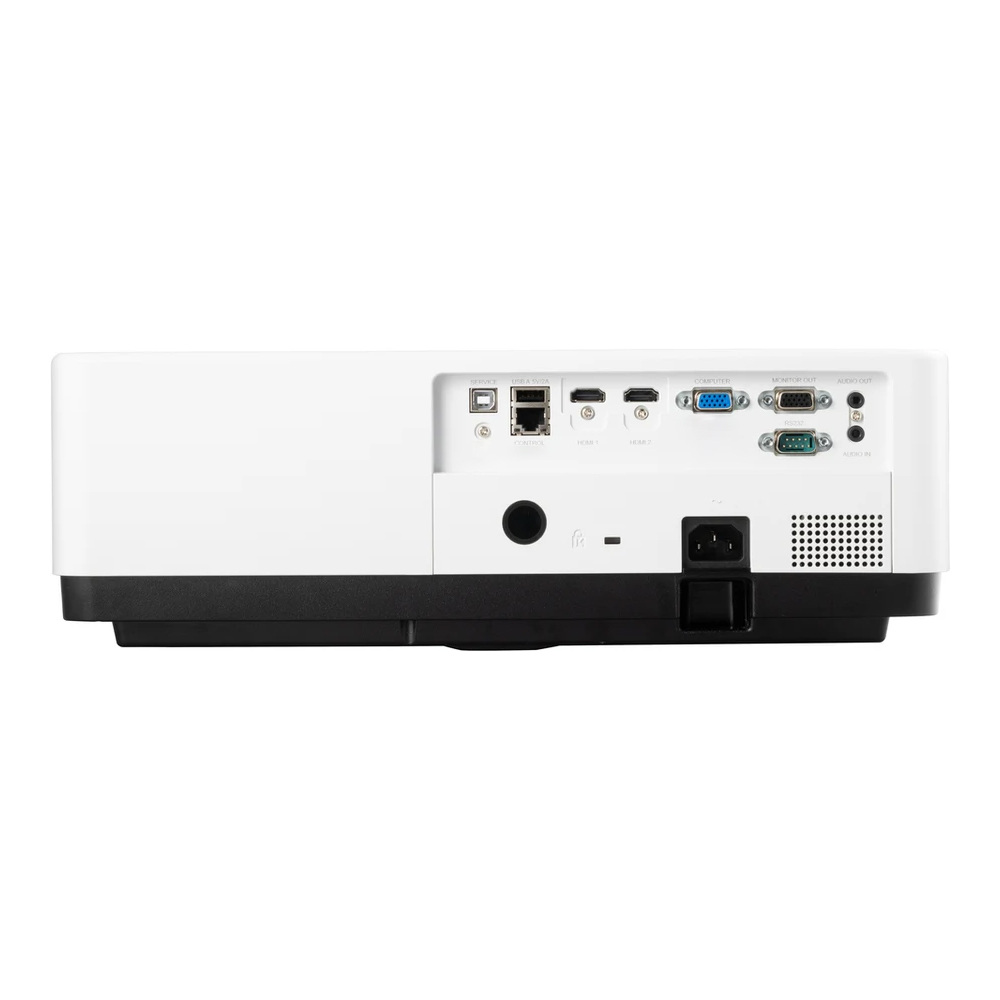

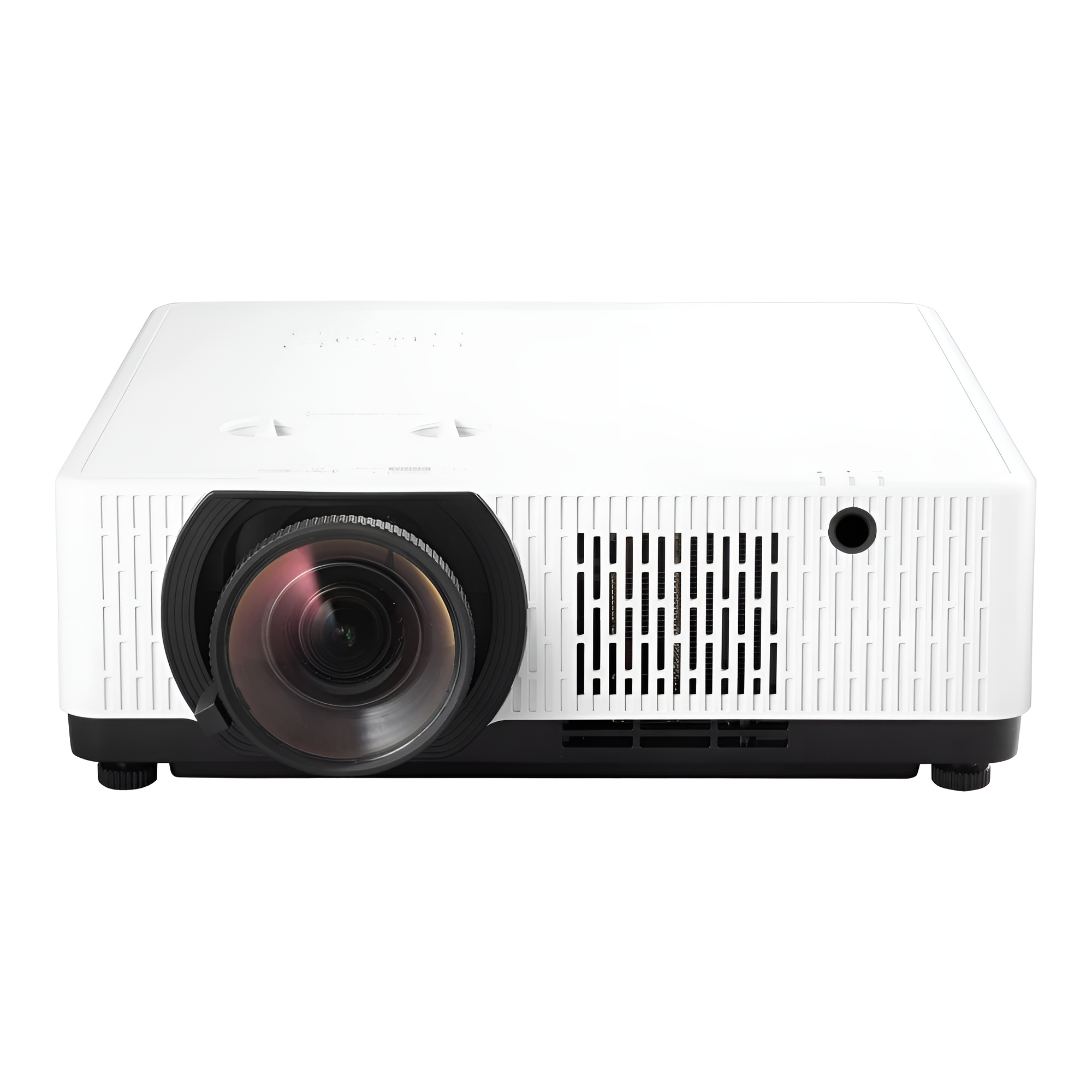

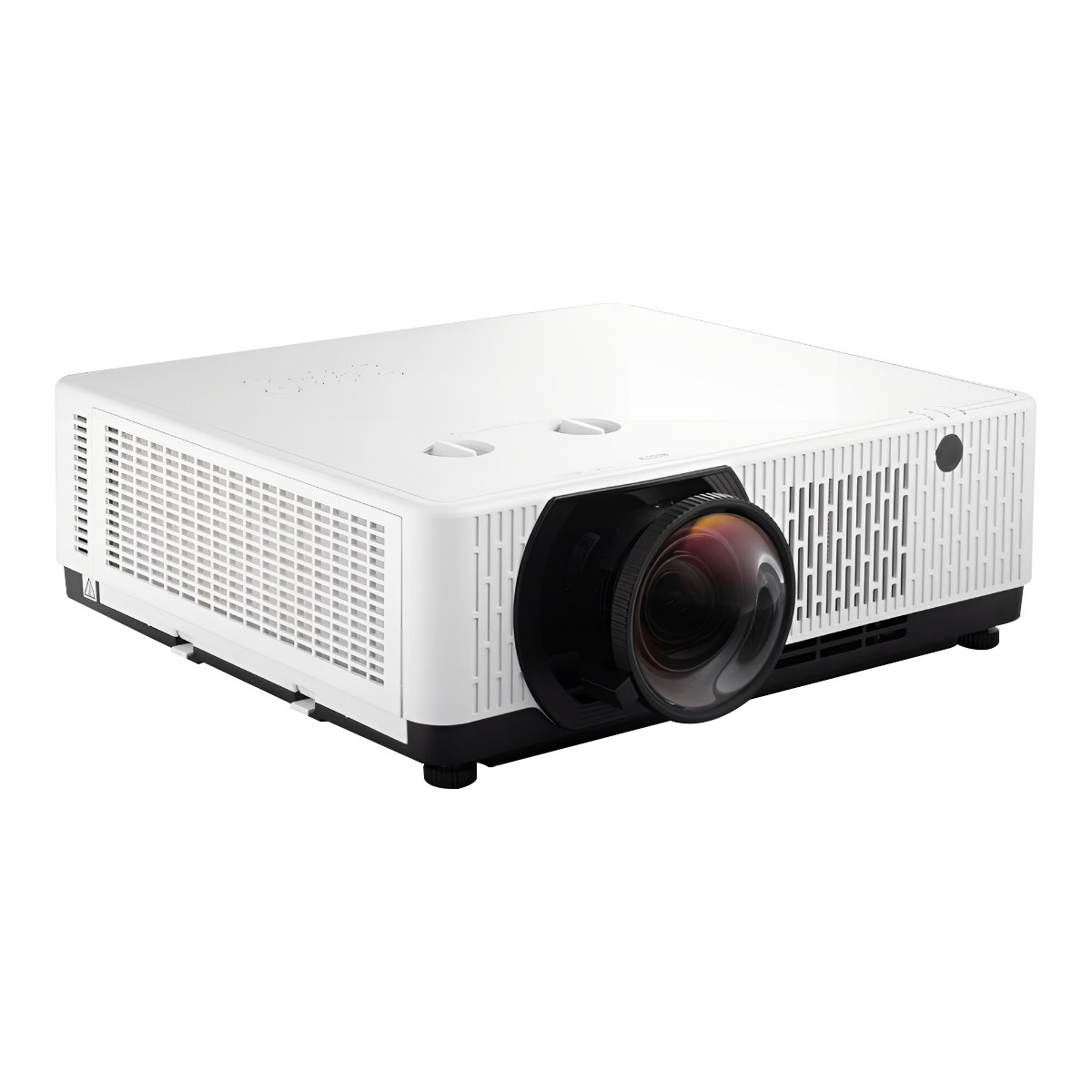

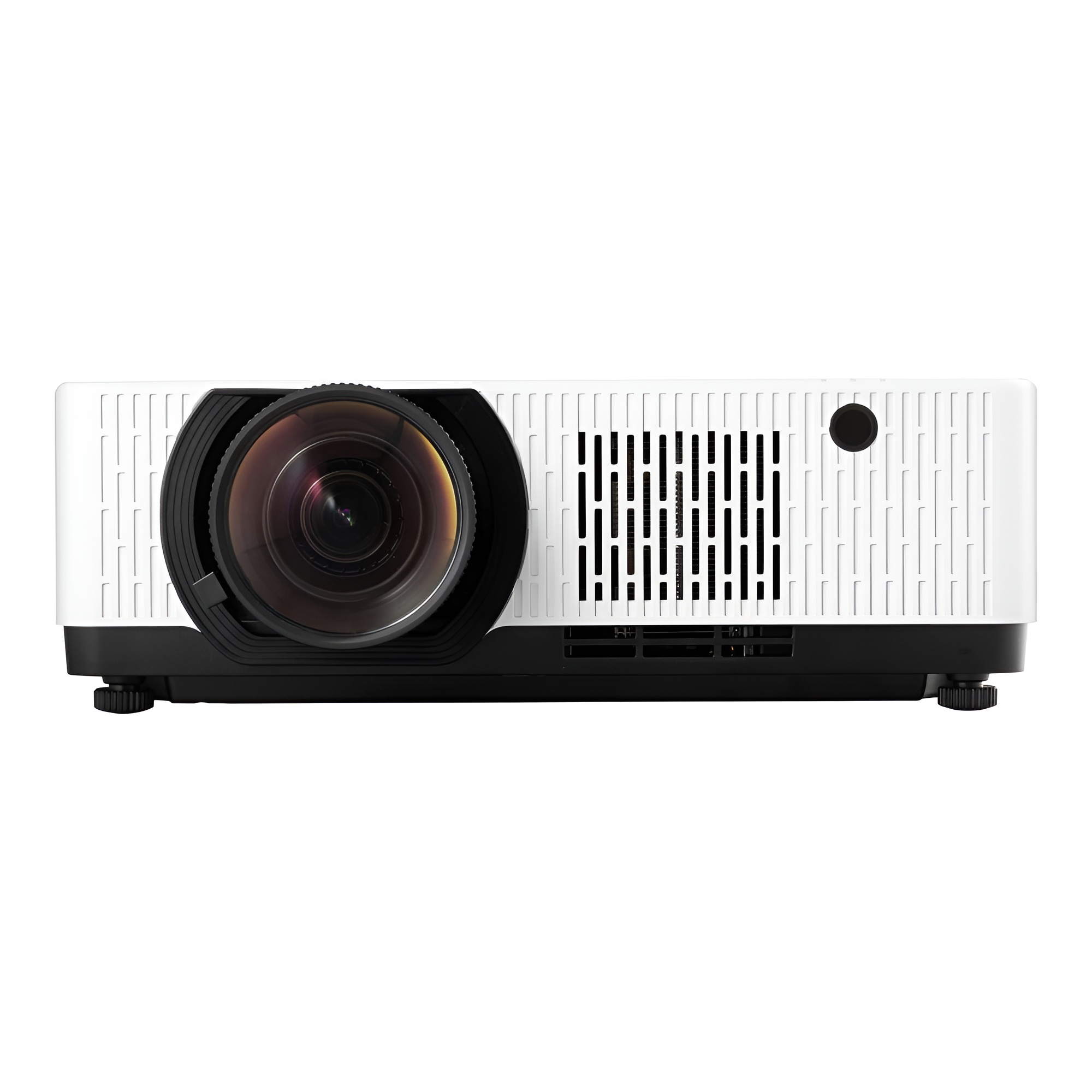

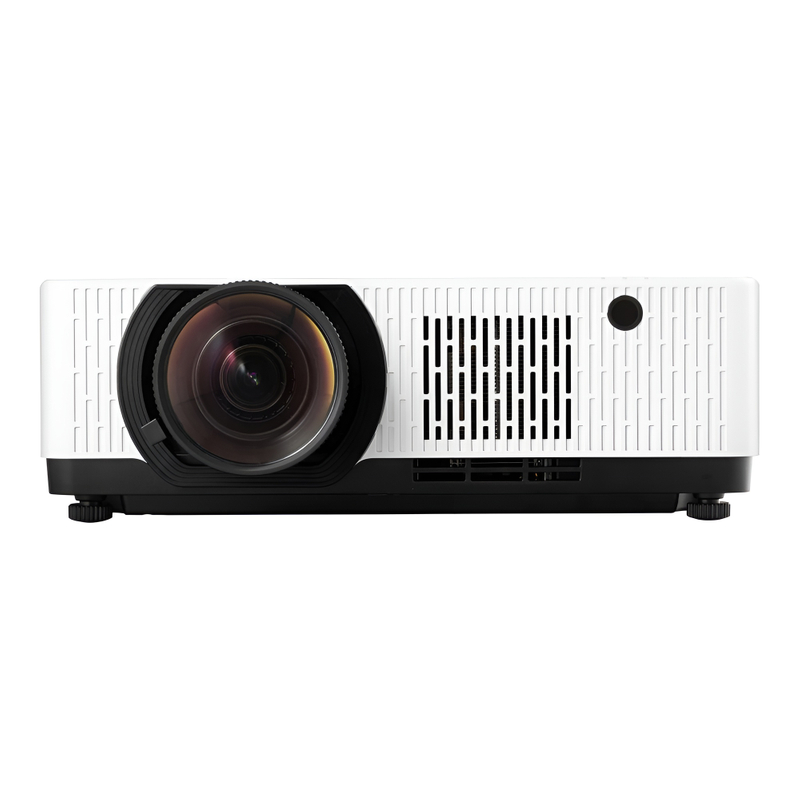

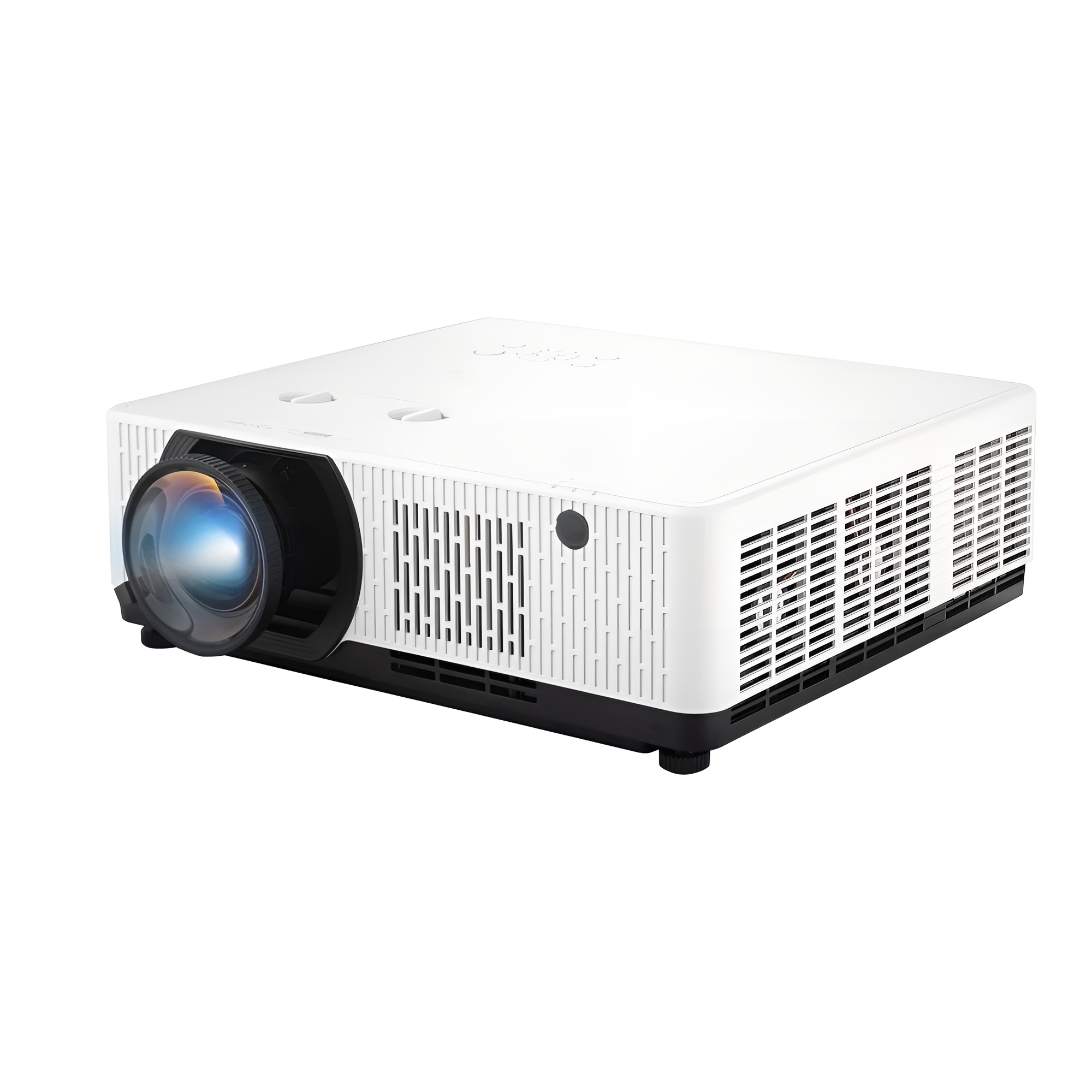

MX-SL7000U
SMX
| Model No. | ||
| Model No. | MX-SL7000U | |
| Brightness(Lumen) | 7000 | |
| Resolution | WUXGA | |
| Light source | NICHIA LASER | |
| Overall Spec | ||
| Panel | Display Panel | 3x0.64" with MLA |
| Display Technology | Liquid Crystal Display | |
| Native Resolution | WUXGA (1920 x 1200) | |
| Light source Life time | Full Normal/Normal mode | 20000hrs |
| ECO1 mode | 30000hrs | |
| ECO2 mode | 30000hrs | |
| Projection Lens | F | 1.7~1.8 |
| f | 9.66mm-11.65mm | |
| Zoom/Focus | Manual | |
| Throw Ratio | 0.68 (wide)-0.82 (tele) | |
| Zoom Ratio | 1.21 | |
| Screen size | 50-300inch | |
| Lens Shift | V:＋50%～0%、 H:±20% | |
| CR | Contrast Ratio | 5,000,000 : 1 |
| Noise | Noise(dB) *1 | 39dB(Normal) 31dB(ECO1) 29dB(ECO2) |
| Uniformity | Uniformity(Actual Min) -JISX6911 | 80% |
| AR | Aspect Ratio | Native:16:10 Compatible: 4:3/16:9 |
| Terminal(I/O port) | ||
| Input | VGA | *1 |
| HDMI 1.4B(IN) | *2 | |
| USB-A | *1 | |
| USB-B | *1 (Display) | |
| RJ45 | *1(Display) | |
| HD BaseT | *1(Optional) | |
| Audio in (mini jack,3.5mm) | *1 | |
| Output | VGA | *1 |
| Audio out (mini-jack,3.5mm) | *1 | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| USB-B | *1 (For upgrade) | |
| General Spec | ||
| Audio | Speaker | 16W*1 |
| Dust filter | W/Filter | |
| Filter Life time | 8000h | |
| Power Consumption | Power Requeirements | 100~240V@ 50/60Hz |
| ECO Standby Mode Power Consumption | <0.5W | |
| Temp.&Humidity | Operating Temp. | 0m≤Altitude≤1700m, Ambient0℃~50℃ |
| 1700m＜Altitude＜3000m, Ambient 0℃~40℃ | ||
| Operating humidity. | 20-85% | |
| Store Temp. | -10 to 50deg.C | |
| High altitude | 0~3000m | |
| Other Functions | ||
| Keystone | Keystone Correction (Lens@center) | V: ±15° H: ±15° Pincushion/Barrel Correction 6 Corner Geometry correction 4 Corner Correction Grid image tune |
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi |
| LAN Control | LAN Control-RoomView (Crestron) | Yes |
| LAN Control--AMX Discovery | Yes | |
| LAN Control-- PJ Link | Yes | |
| Scanning Frequency | H-Synch Range | 15~100KHz |
| V-Synch Range | 24~85Hz | |
| Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz |
| Video Signal Input | 480i, 480p, 576i, 576p, 720p, 1080i and 1080p | |
| SW setting | Auto Setup | INPUT SEARCH,AUTO PC,Auto Keystone |
| Blank | Yes | |
| Suspend | Yes(5 minutes no signal as default) | |
| Picture mode | Dynamic, Standard, Cinema,Colorboard, sim-DICOM,Blackboard(Green) | |
| Cooling time | 0s、normal、30s | |
| Auto Ceiling | Yes | |
| D-Zoom | 1~33 | |
| Others | 360° projection | Yes |
| Edge Blending | Yes | |
| Dimension&Weight | ||
| Product Size (mm) | 405(W)×404(D)×164(H) | |
| Net. Weight (KG) | 8.1kg | |
| Packaging Size(mm) | 510(W)×498(D)×260(H) | |
| Gross. Weight (KG) | ~10.4KG | |
| Accessory | ||
| Manual Languages | Chinese,English | |
| Standard Accessaries | Power cord, HDMI cable, Remote control | |
