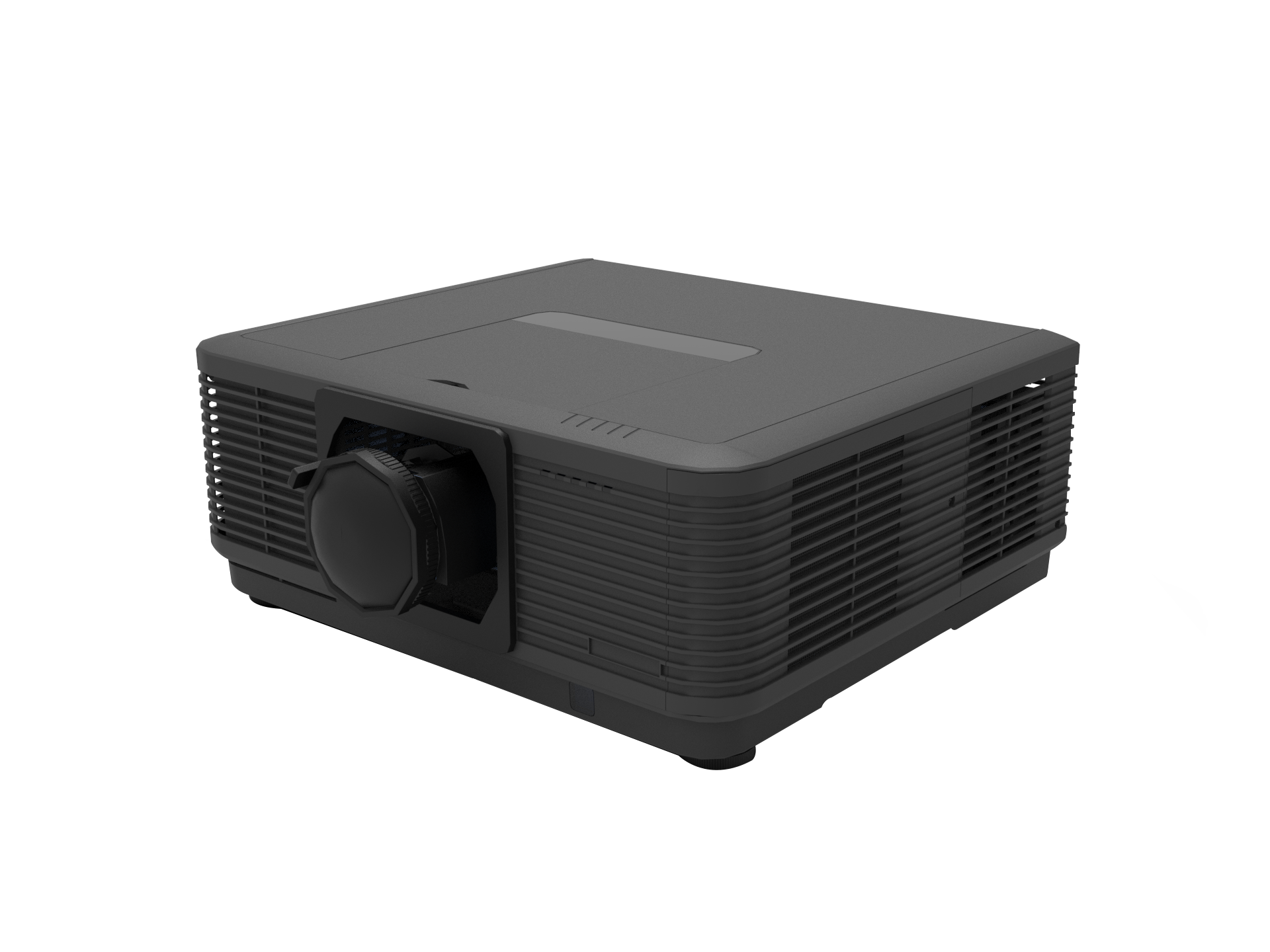

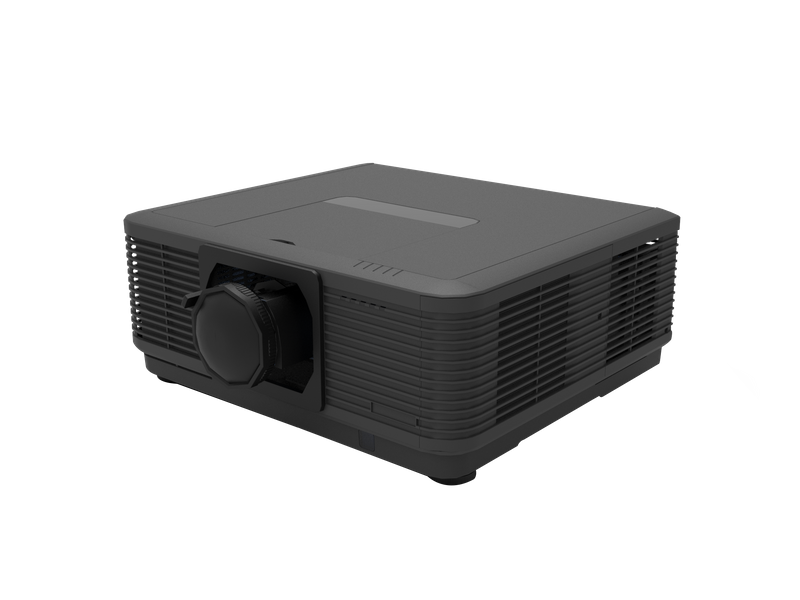

MX-PL9000K
SMX
| Key Parts | |||
| Mode No. | MX-PL9000K | ||
Brightness (Ansi Lumen) | 9000 | ||
| Resolution | 4K | ||
| Overall Spec | |||
| Display Device | Display Technology | 3LCD (3*0.64") | |
| Native Resolution | 4K | ||
| Light source Lifetime | Normal mode | 20,000 hrs | |
| Projection Lens (Standard Len) | Zoom/Focus type | Manual | |
| Throw Ratio (optional lens) | 1.08-1.78 | ||
| F#(Wide-Tele) | 1.58-2.02 | ||
| f(mm) | 15.3-24.6 | ||
| Screen size | 30-300" | ||
| Lens Shift | V: +45%~0% H:±21% | ||
| CR | Contrast Ratio | 5000000:1 | |
| Noise | Noise(dB） | Normal: 39dB Long life: 39dB Quietness: 32dB | |
| Uniformity | Uniformity | 80% | |
| AR | Aspect Ratio | 16:10 | |
| I/O Terminal | |||
| Input | HDMI IN | *2 (HDMI 2.0) | |
| DVI-D | *1 | ||
| HD BaseT | *1 | ||
| 3G-SDI | *1（Optional) | ||
| USB-A | *1 | ||
| USB-B | *1（Display） | ||
| RJ45 | *1（Display） | ||
| Audio in (mini jack,3.5mm） | *1 | ||
| Output | HDMI OUT | *1 (HDMI 2.0) | |
| Audio out (mini-jack,3.5mm） | *1 | ||
| Control | RS232 | *1 | |
| Wired Remote(IN) | *1 | ||
| Wired Remote(OUT) | *1 | ||
| RJ45 | *1 (Control) | ||
| USB-B | *1 (For upgrade) | ||
| DMX512 | *1 | ||
| General Spec | |||
| Signal input parameter | H-Synch Range | 15~100KHz | |
| V-Synch Range | 24~120Hz | ||
| Video signal input | up to 4K @ 60Hz | ||
| Power Consumption | Power Requirements | 100~240V@ 50/60Hz | |
| ECO Standby Power | <0.5W | ||
| Power Consumption (Normal) -Standard | 755W | ||
| Temp.&Humidity | Operating Temp. | 5 to 45 ℃ | |
| Operating altitude | Normal: 0~1700m Altitude: 1700~3650m | ||
| Operating Thumidity. | 20-80% | ||
| Store Temp. | -10 to 50 ℃ | ||
| Store Thumidity. | 20-80% | ||
| Other Functions | |||
| Keystone | Keystone Correction (Lens@center) | H/V keystone 4 Corner Correction, Pincushion/Barrel Correction 6 Corner Correction Geometry Correction Grid image tune Correction | |
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazakh, Vietnamese, Thai, Farsi | |
| LAN Control | LAN Control-RoomView (Crestron) | Yes | |
| LAN Control--AMX Discovery | Yes | ||
| LAN Control--PJ Link | Yes | ||
| SW setting | Direct Power On | Yes | |
| Signal Power On | Yes | ||
| Auto Power Off | Yes(5miniutes no singnal as default) | ||
| Picture mode | Dynamic, Standard, Cinema, Colorboard, sim-DICOM | ||
| Super Resolution | Yes | ||
| D-Zoom(Magnify) | Yes (Max 4 times) | ||
| Edge Blending | Yes | ||
| Shutter/Blank | Yes | ||
| High altitude | Auto/On/Off | ||
| User Logo | Yes | ||
| Others | 360° projection | Yes | |
| Kensington lock | Yes | ||
| Sealed design | Yes | ||
| Filter-less design | Yes | ||
| Real-time clock | Yes | ||
| NFC | Yes | ||
| PW presenter | Yes | ||
| Dimension&Weight | |||
| MAX Dimensions (WxDxH mm) | 490x510x205 | ||
| Net. Weight (kg) | ~18.5 | ||
| Packaging Size (WxDxH mm) | 800*740*440 | ||
| Gross. Weight (kg) | ~28 | ||
| Accessory | |||
| Standard accessory | Power Cord, Remote, HDMI Cable | ||
