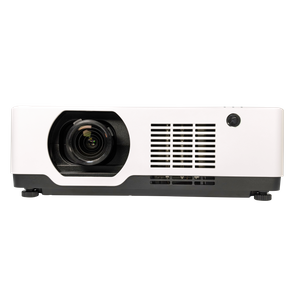

MX-LK5200
SMX
SMX MX-LK5200
Main Features:
Brightness: 5200 Lumen
Resolution: 4K
Light Source: Laser
Light Lifetime: 20000-30000 hours
Dynamic Contrast Ratio: 5000000:1
Key Features:
4K Enhanced Resolution & HDR10: Utilizing 3LCD display technology (featuring 3x 0.64”panels), this unit supports 4K enhanced resolution—capable of processing PC signal inputs up to 4K at 60Hz—and features HDR10 High Dynamic Range support, ensuring images are rendered with sharp detail and rich tonal depth.
High Brightness Performance: With a brightness output of 5200 lumens and a dynamic contrast ratio of 5,000,000:1, it delivers clear, vivid images even in brightly lit indoor environments.
Laser Light Source Lifespan: Powered by a laser light source, the unit offers a lifespan of 20,000 hours in Normal mode—extendable to 30,000 hours in ECO mode—significantly reducing long-term maintenance and replacement costs.
Aspect Ratio: The native aspect ratio is 16:9 (the standard format for home theater and modern presentations), while also offering compatibility with 4:3 and 16:10 formats.
Optical and Installation Flexibility:
Standard Lens: Features a Zmax lens with a throw ratio of 1.35–1.63:1, supporting 1.2x optical zoom.
Installation and Adjustment: Keystone Correction: Supports vertical ±30° and horizontal ±25° correction, and includes a 4-corner correction function to facilitate image alignment in off-axis projection positions.
360° Projection and Auto-Flip: Supports installation at any 360-degree angle; features an "Auto Ceiling" mode that automatically inverts the image when ceiling-mounted.
Projection Size: Capable of projecting images ranging from 30 to 300 inches at various projection distances.
Connectivity and Control Features:
Comprehensive Connectivity: Inputs: Equipped with two HDMI 2.0 ports, ensuring high-bandwidth transmission of 4K signals; also includes two USB-A ports.
Optional Features: Supports an optional HDBaseT interface, ideal for professional environments requiring long-distance transmission of Ultra HD signals.
Network and Central Control: Features an RJ45 network port and supports the PJ Link protocol, facilitating seamless integration into existing AV management systems for remote monitoring and control.
Audio Output: In addition to built-in 16W speakers, the unit provides an S/PDIF digital audio interface and a 3.5mm analog audio output.
| Model No. | MX-LK5200 | |
| Brightness (Lumen) | 5200 | |
| Resolution | 4K enhancement | |
| Overall Spec | ||
| Panel | Display Panel | 3x0.64" with MLA |
| Display Technology | Liquid Crystal Display | |
| Light source Lifetime | Light Source | Laser |
| Normal mode | 20000hrs | |
| ECO mode | 30000hrs | |
| Projection Lens | Lens Vendor | Zmax Lens |
| F | 1.61~1.76 | |
| f | 19.1~23mm | |
| Zoom/Focus | Manual | |
| Throw Ratio | 1.35~1.63: 1 | |
| Zoom Ratio | 1.2x optics | |
| Screen size | 30-300inch | |
| CR | Dynamic Contrast Ratio | 5,000,000:1 |
| Noise | Noise(dB) | 40dB(Normal) 30dB(ECO) |
| Uniformity | Uniformity | 80% |
| AR | Aspect Ratio | Native:16:9 Compatible: 4:3/16:10 |
| Terminal(I/O port) | ||
| Input | HDMI (2.0IN) | *2 |
| USB-A | *2 | |
| RJ45 | *1 | |
| HD BaseT | *1(Optional) | |
| Output | Audio port | S/PDIF*1 |
Audio out (mini-jack,3.5mm） | *1 | |
| Control | RS232C | *1 |
| RJ45 | *1 (Control) | |
| General Spec | ||
| Audio | Speaker | 16W*1 |
| Dust filter | W/Filter | |
| Filter Lifetime | 7000h | |
| Power Consumption | Power Requirements | 100~240V@ 50/60Hz |
| Power Consumption (Normal) (Max) | 330 | |
| Power Consumption (ECO1) (Max) | 190 | |
| ECO Standby Mode Power Consumption | <0.5W | |
| Temp.&Humidity | Operating Temp. | 0 to 40°C |
| Operating humidity. | 20-80% | |
| Storage Temp. | -10 to 50°C | |
| Storage humidity. | 10-85% | |
| High altitude | 0-3000m | |
| Other Functions | ||
| Keystone | Keystone Correction (Lens@center) | V: ±30° H：±25° 4 Corner Correction |
| OSD | Languages | English, Simplified Chinese |
| LAN Control | LAN Control--PJ Link | Yes |
| Scanning Frequency | H-Synch Range | 15~100KHz |
| V-Synch Range | 24~85Hz | |
| Display Resolution | Computer Signal Input | up to 4K60Hz |
| SW setting | D-Zoom | YES(HDMI） |
| laser mode | Normal/ECO | |
| Light source brightness adjustment | 50-100% | |
| High altitude | Yes | |
| Auto Ceiling | Yes | |
| HDR10 | Yes | |
| Standby mode | Normal/ECO | |
| Others | 360° projection | Yes |
| Dimension&Weight | ||
| Product (WxDxH mm) | 390*294*128 | |
| Net. Weight (KG) | 5Kg | |
| Packaging (WxDxH mm) | 492*443*239 | |
| Gross. Weight (KG) | ~6.5Kg | |
| Accessory | ||
| Manual Languages | Chinese, English | |
| Standard Accessaries | Power cord, Remote control | |
