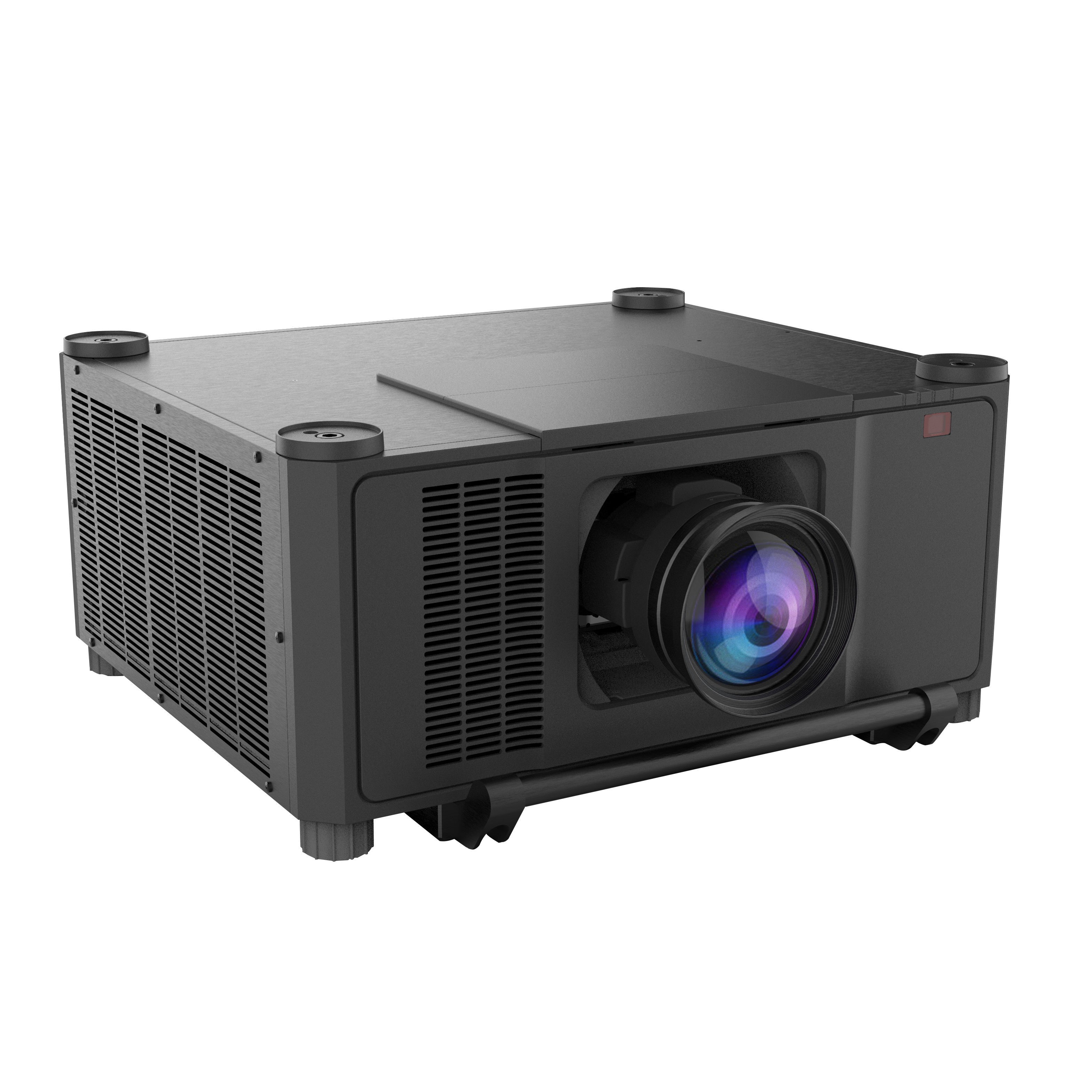

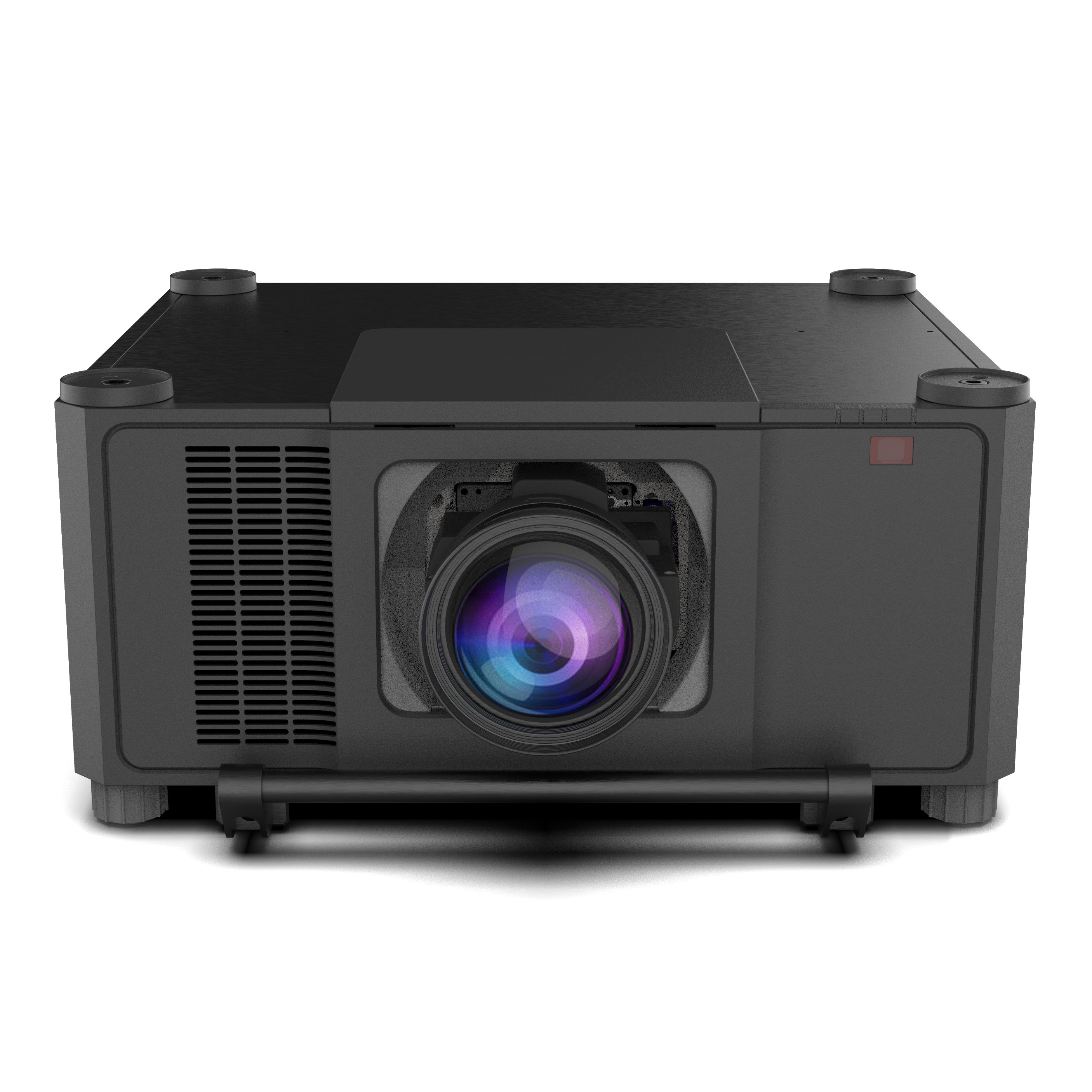

MX-X22000U
SMX

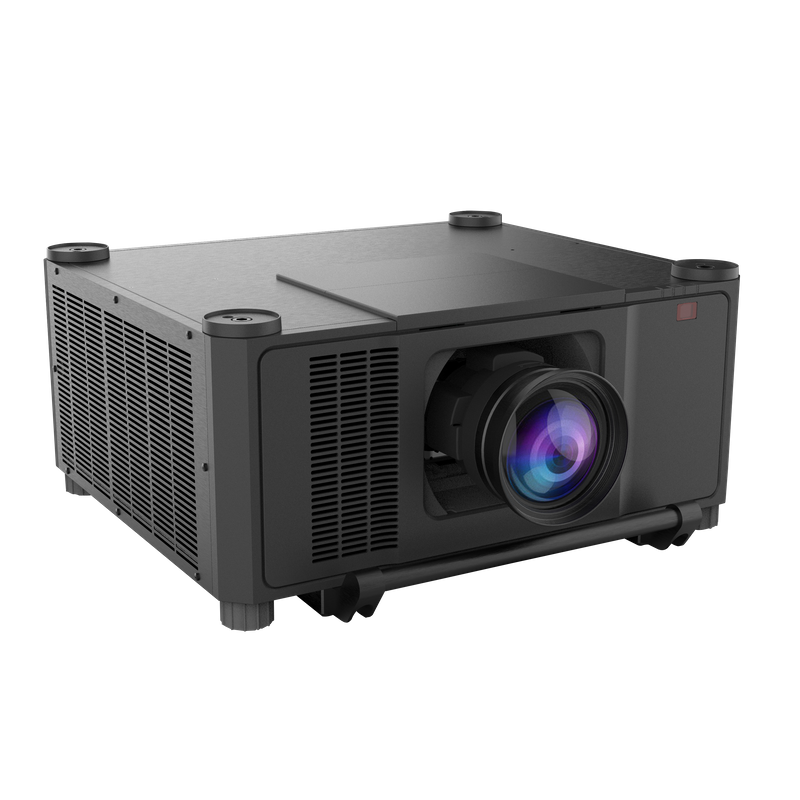

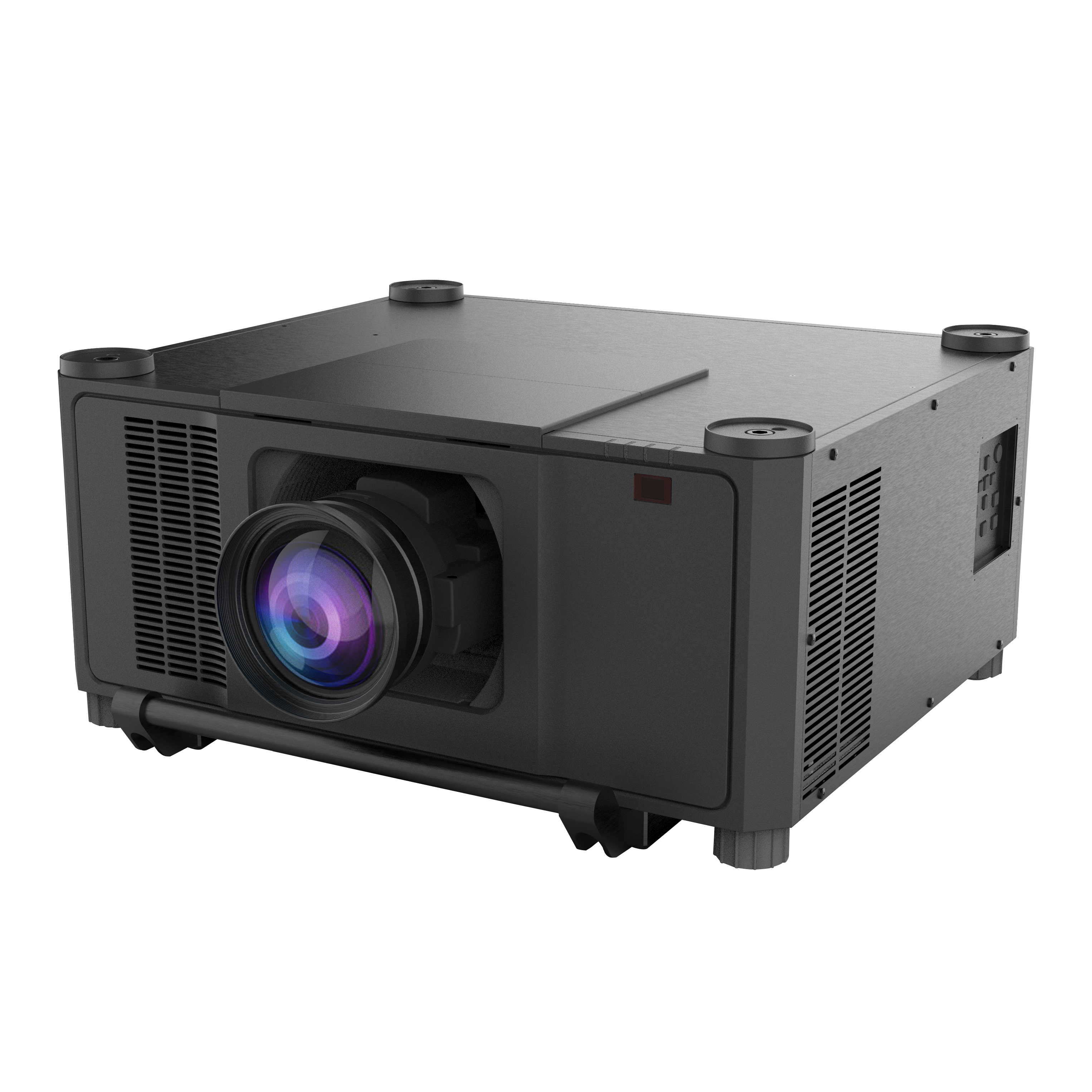

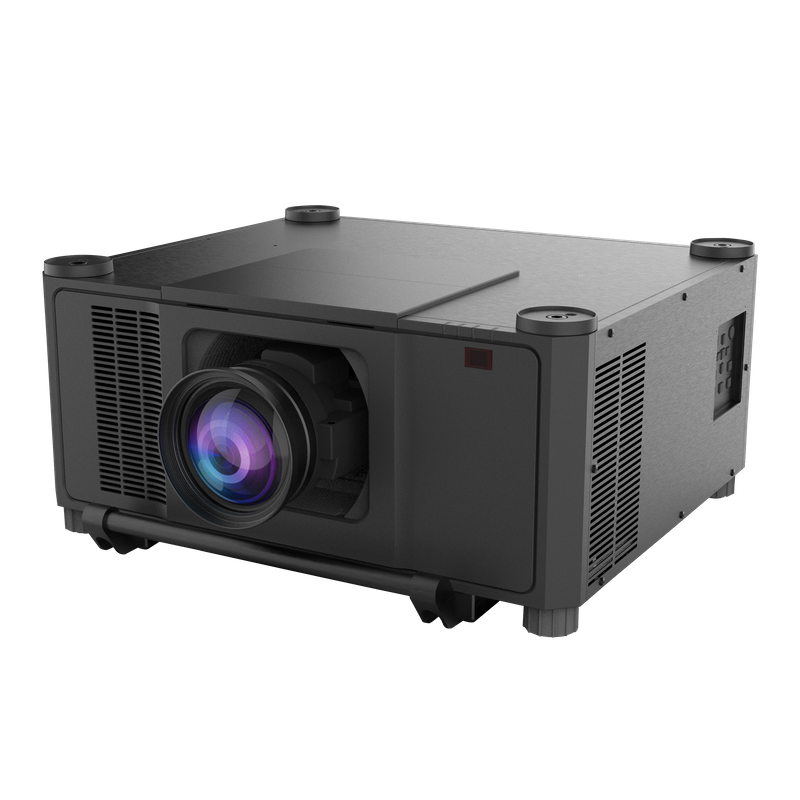

| 22000 Lumen Laser Projector | ||
| Key parts | ||
| Model No. | MX-X22000U | |
| Brightness (Ansi Lumens ) | 22000 | |
| Resolution | WUXGA (1920 x 1200) | |
| Light source | Dual-Color Laser(Blue+Red) | |
| Overall Spec | ||
| Panel | Display Panel | 3x1.0” |

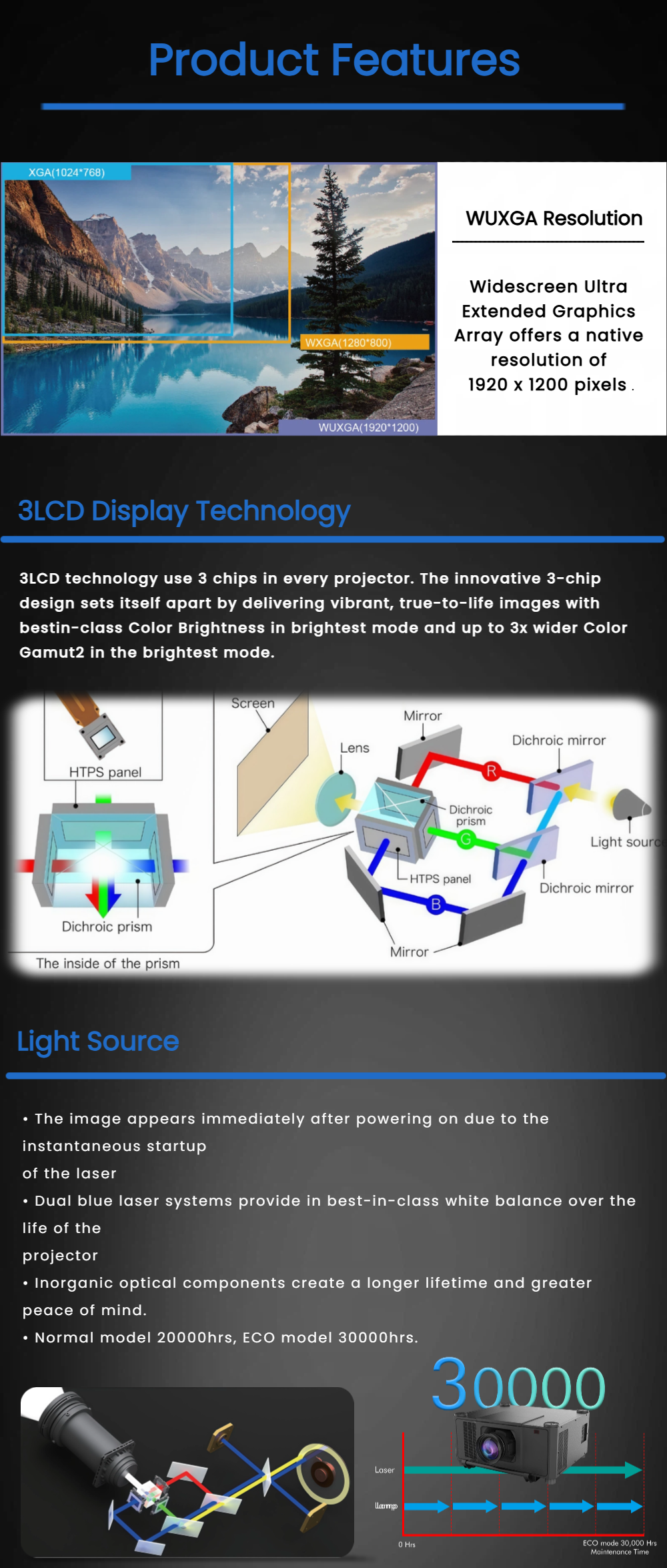

| Display Technology | Liquid Crystal Display | |
| Native Resolution | WUXGA (1920 x 1200) | |
| Laser Lifetime | Normal mode | 20000hrs |
| ECO mode | 30000hrs | |
| Projection Lens (STD) | Zoom/Focus | Motorized |
| Throw Ratio（16：10） | 1.24-2.01 @100inch | |
| F | 1.8-2.24 | |
| f | 27.7-44.3mm | |
| Zoom Ratio | 1.62 | |
| Screen size | 60-500 inch | |

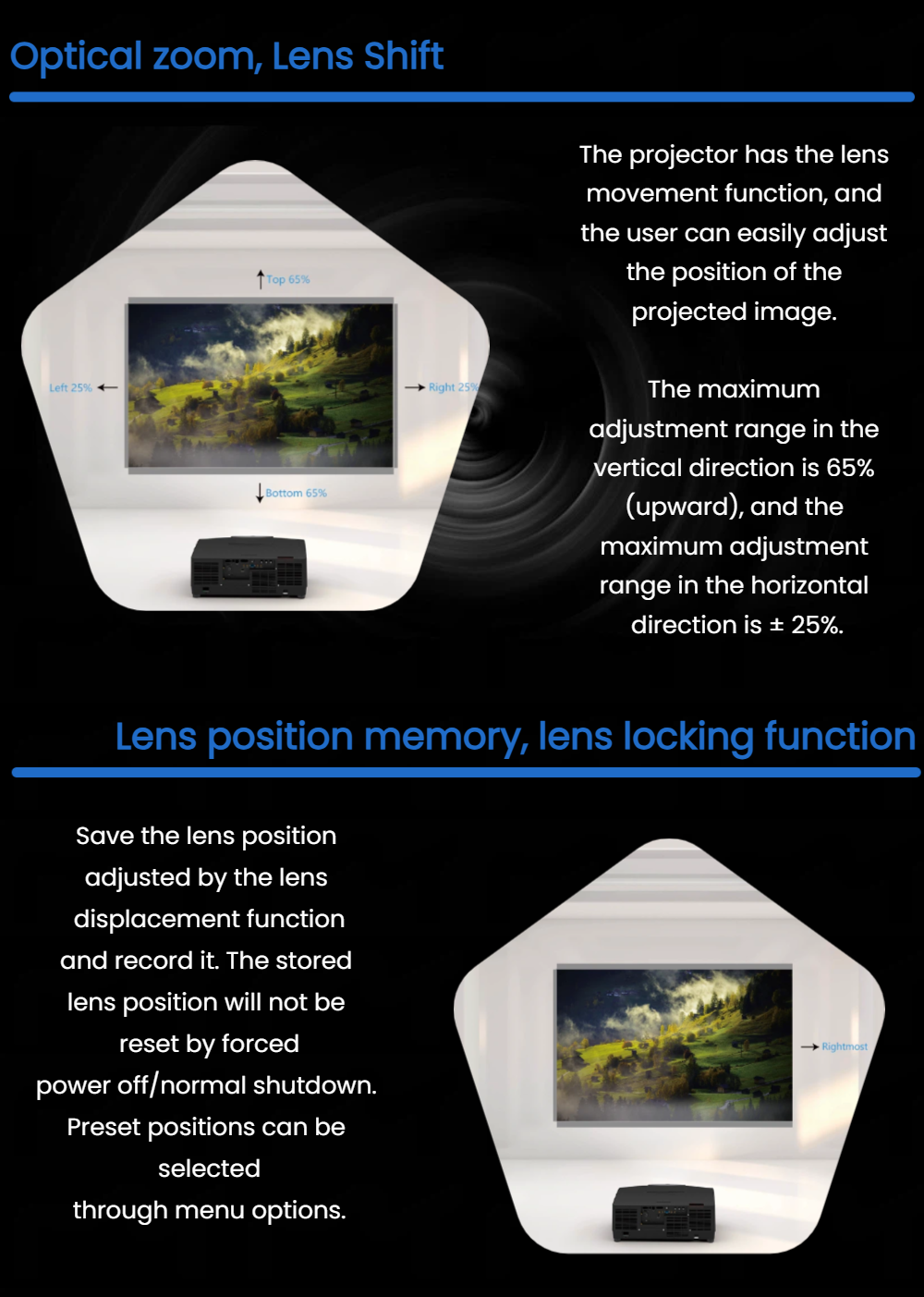

| Lens Shift | V: ±65% H:±25% | |
| CR | Contrast Ratio(Min) | 3,000,000:1 |
| Noise | Noise(dB) | 41dB |
| Uniformity | Uniformity | TYP：90% |
| AR | Aspect Ratio | Native:16:10 Compatible: 4:3/16:9/normal/16:6 |

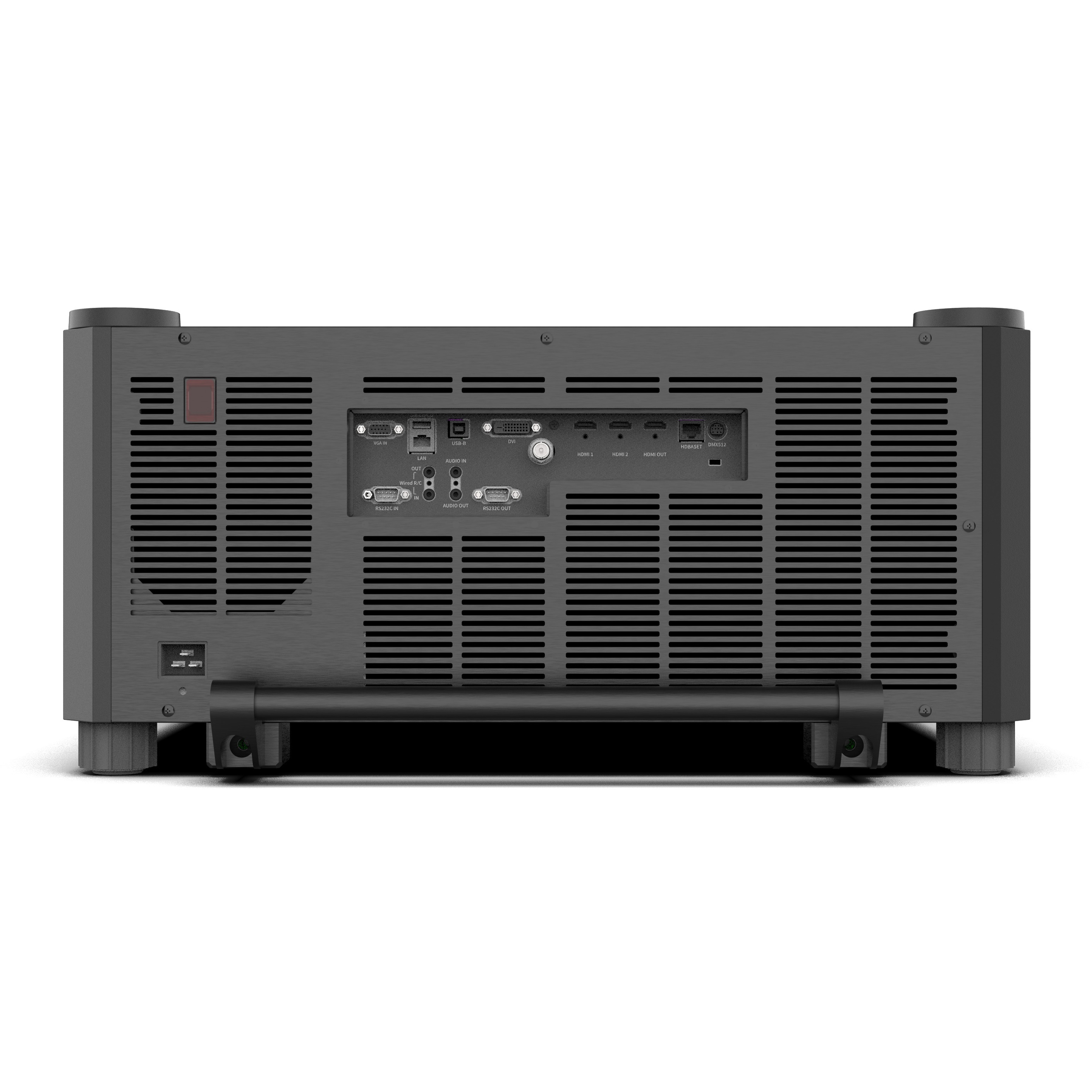

| Terminal(I/O port) | ||
| Input | VGA | *1 |
| HDMI 1.4(IN) | *2 | |
| USB-A | *1 | |
| USB-B | *1（Display） | |
| RJ45 | *1（Display） | |
| DVI-D | *1 | |
| HD BaseT | *1 | |
| HD-SDI(3G-SDI) | *1（Display) (Optional) | |
| Audio in（mini jack,3.5mm） | *1 (VGA/DVI-D share) | |
| DMX512 | *1 | |
| Output | HDMI 1.4(OUT) | *1 |
| Audio out（mini-jack,3.5mm） | *1 | |
| Control | RS232C (Input） | *1 |
| RS232C (Output） | *1 | |
| Wired Remote(IN) | *1 | |
| Wired Remote(OUT) | *1 | |
| General Spec | ||
| Audio | Speaker | N/A |
| Power Consumption | Power Requirements | 120~240V@ 50/60Hz |
| Power Consumption (Full) (Max) | 1520W | |
| Power Consumption (Normal) (Max) | 1400W | |
| Power Consumption (ECO1) (Max) | 1155W | |
| Power Consumption (ECO2) (Max) | 795W | |
| ECO Standby Mode Power Consumption | <0.5W | |
| Temp.&Humidity | Operating Temp. | 0 to 45°C |
| Operating Thumidity. | 20%-80% | |
| Store Temp. | -10 to 50°C | |
| Store Humidity. | 20%-80% | |
| Other Functions | ||

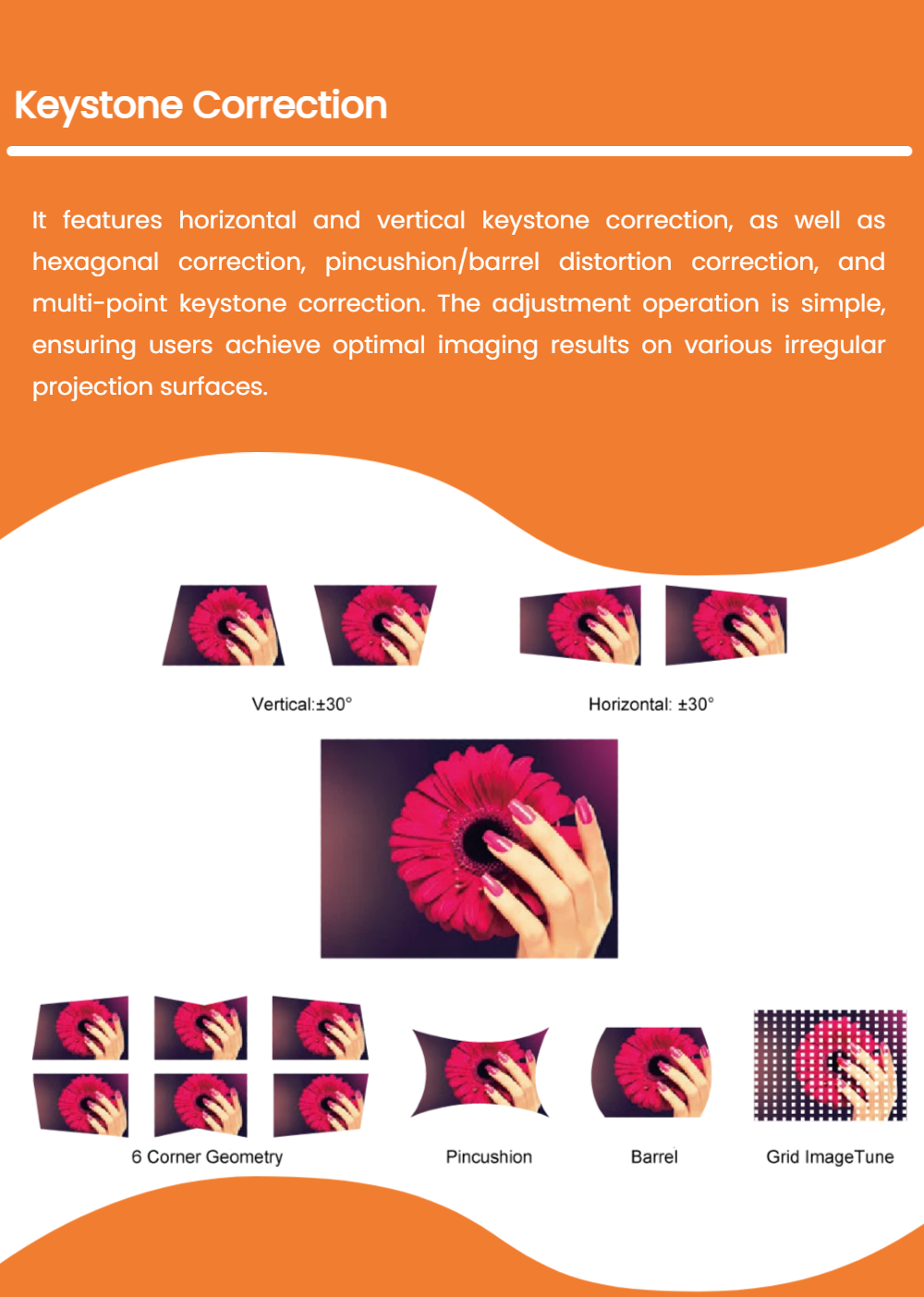

| Keystone | Keystone Correction | V: ±30°，H：±30° Pincushion/Barrel Correction, 6 Corner Geometry correction Grid ImageTune correction |
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazakh, Vietnamese, Thai, Farsi |

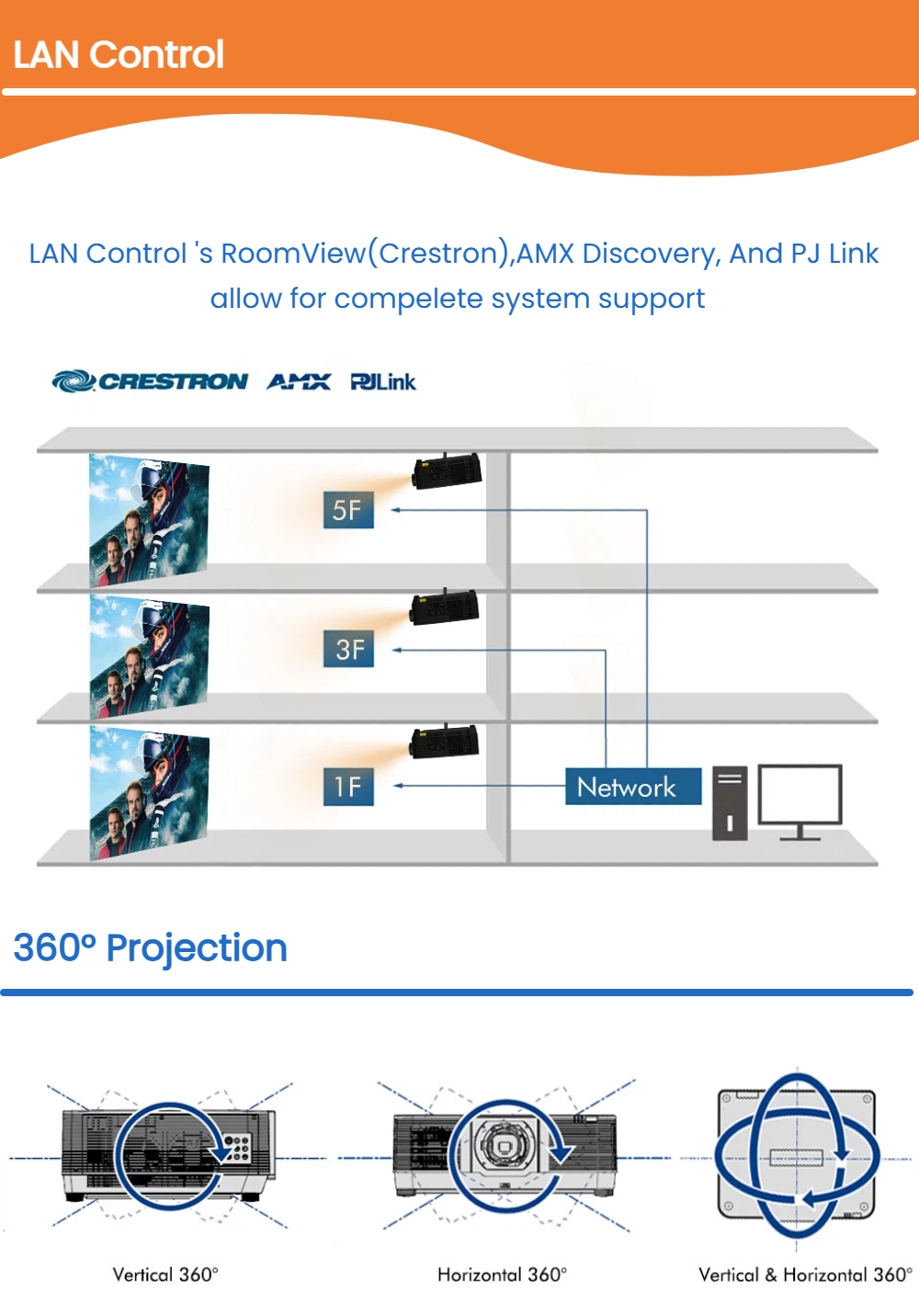

| LAN Control | LAN Control-RoomView (Crestron) | Yes(Crestron 1.0) |
| LAN Control-AMX Discovery | Yes | |
| LAN Control-PJ Link | Yes | |
| Scanning Frequency | H-Synch Range | 15~100KHz |
| V-Synch Range | 24~85Hz | |
| Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA, 4K@30Hz |
| Video Signal Input | 480i, 480p, 576i, 576p, 720p, 1080i and 1080p | |
| SW setting | Auto Setup | INPUT SEARCH, AUTO PC, |
| Blank | Yes | |
| Suspend | Yes(5miniutes no singnal as default) | |
| Picture mode | Bright, Standard, Cinema, Colorboard, DICOM, Blackboard(Green), Advanced | |
| Cooling time | 0s,30s,Normal | |
| High altitude | Yes(0~3640m) | |
| Auto Ceiling | Yes | |
| D-Zoom | 1~33 | |
| Others | ||
| 360° projection | Yes | |

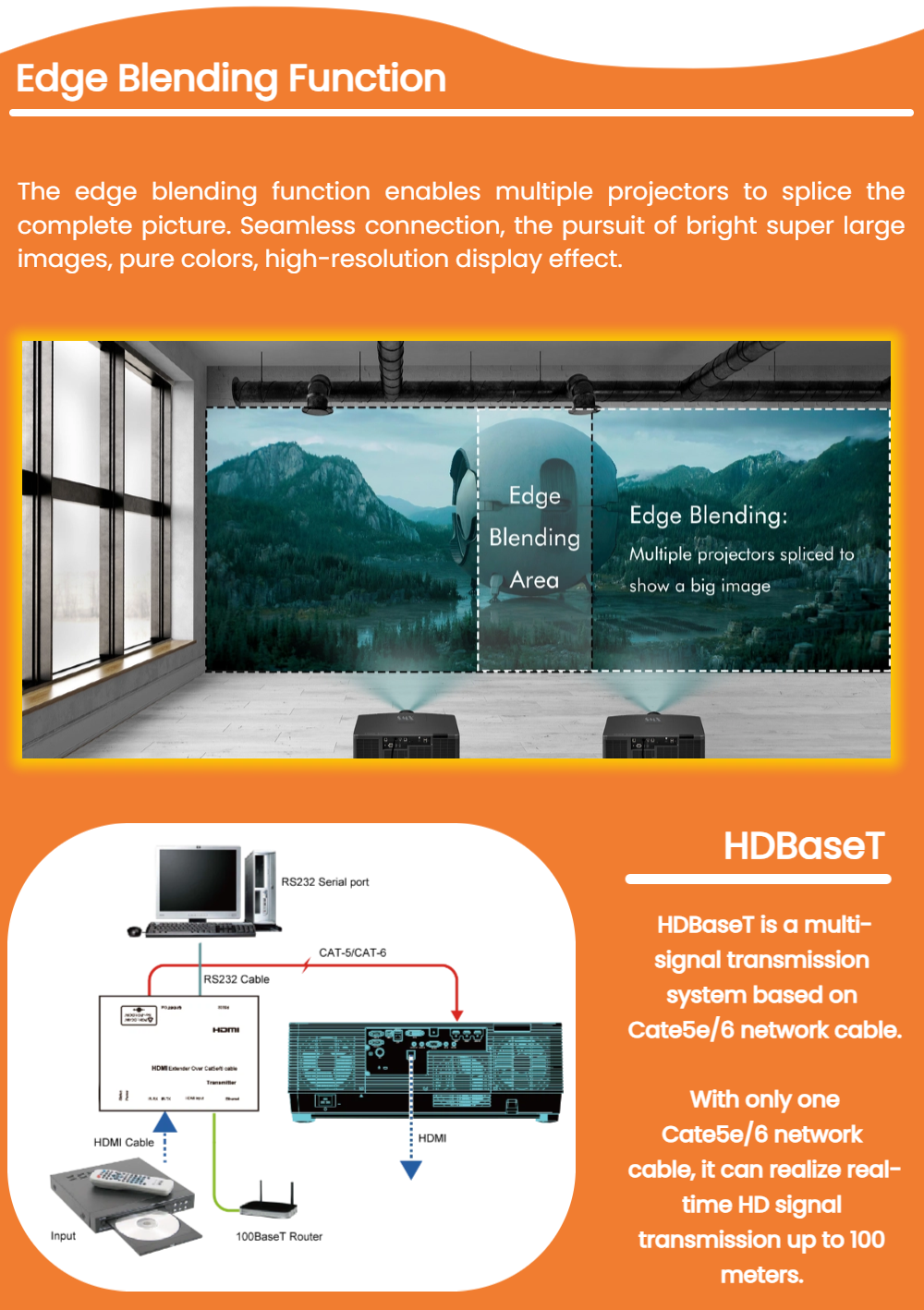

| Edge Blending | Yes | |
| Adjustable brightness | Yes | |
| Lens position memory, lens locking function | Yes | |
| Closed dustproof design, free of maintenance and replacement of the filter screen | Yes | |
| DMX512 | Yes | |
| Timing function | Yes | |
| Safety redundant circuit | Yes | |
| Dynamic power control specifications | Yes | |
| Dimension&Weight | ||
| Product size (WxHxD mm) | 655*311*664 | |
| Net. Weight (KG) | 38.7KG | |
| Packaging Size (WxHxD mm) | 810*741*442 | |
| Gross. Weight (KG) | 46KG | |
| Accessory | ||
| Manual Languages | Chinese, English | |
| Standard Accessories | Power cord(3m,Black), Remote control | |
| Packing | Carton(Standard)/ Flight Case | |
| 22000 Lumen Laser Projector | ||
| Key parts | ||
| Model No. | MX-X22000U | |
| Brightness (Ansi Lumens ) | 22000 | |
| Resolution | WUXGA (1920 x 1200) | |
| Light source | Dual-Color Laser(Blue+Red) | |
| Overall Spec | ||
| Panel | Display Panel | 3x1.0” |
| Display Technology | Liquid Crystal Display | |
| Native Resolution | WUXGA (1920 x 1200) | |
| Laser Lifetime | Normal mode | 20000hrs |
| ECO mode | 30000hrs | |
| Projection Lens (STD) | Zoom/Focus | Motorized |
| Throw Ratio（16：10） | 1.24-2.01 @100inch | |
| F | 1.8-2.24 | |
| f | 27.7-44.3mm | |
| Zoom Ratio | 1.62 | |
| Screen size | 60-500 inch | |
| Lens Shift | V: ±65% H:±25% | |
| CR | Contrast Ratio(Min) | 3,000,000:1 |
| Noise | Noise(dB) | 41dB |
| Uniformity | Uniformity | TYP：90% |
| AR | Aspect Ratio | Native:16:10 Compatible: 4:3/16:9/normal/16:6 |
| Terminal(I/O port) | ||
| Input | VGA | *1 |
| HDMI 1.4(IN) | *2 | |
| USB-A | *1 | |
| USB-B | *1（Display） | |
| RJ45 | *1（Display） | |
| DVI-D | *1 | |
| HD BaseT | *1 | |
| HD-SDI(3G-SDI) | *1（Display) (Optional) | |
| Audio in（mini jack,3.5mm） | *1 (VGA/DVI-D share) | |
| DMX512 | *1 | |
| Output | HDMI 1.4(OUT) | *1 |
| Audio out（mini-jack,3.5mm） | *1 | |
| Control | RS232C (Input） | *1 |
| RS232C (Output） | *1 | |
| Wired Remote(IN) | *1 | |
| Wired Remote(OUT) | *1 | |
| General Spec | ||
| Audio | Speaker | N/A |
| Power Consumption | Power Requirements | 120~240V@ 50/60Hz |
| Power Consumption (Full) (Max) | 1520W | |
| Power Consumption (Normal) (Max) | 1400W | |
| Power Consumption (ECO1) (Max) | 1155W | |
| Power Consumption (ECO2) (Max) | 795W | |
| ECO Standby Mode Power Consumption | <0.5W | |
| Temp.&Humidity | Operating Temp. | 0 to 45°C |
| Operating Thumidity. | 20%-80% | |
| Store Temp. | -10 to 50°C | |
| Store Humidity. | 20%-80% | |
| Other Functions | ||
| Keystone | Keystone Correction | V: ±30°，H：±30° Pincushion/Barrel Correction, 6 Corner Geometry correction Grid ImageTune correction |
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazakh, Vietnamese, Thai, Farsi |
| LAN Control | LAN Control-RoomView (Crestron) | Yes(Crestron 1.0) |
| LAN Control-AMX Discovery | Yes | |
| LAN Control-PJ Link | Yes | |
| Scanning Frequency | H-Synch Range | 15~100KHz |
| V-Synch Range | 24~85Hz | |
| Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA, 4K@30Hz |
| Video Signal Input | 480i, 480p, 576i, 576p, 720p, 1080i and 1080p | |
| SW setting | Auto Setup | INPUT SEARCH, AUTO PC, |
| Blank | Yes | |
| Suspend | Yes(5miniutes no singnal as default) | |
| Picture mode | Bright, Standard, Cinema, Colorboard, DICOM, Blackboard(Green), Advanced | |
| Cooling time | 0s,30s,Normal | |
| High altitude | Yes(0~3640m) | |
| Auto Ceiling | Yes | |
| D-Zoom | 1~33 | |
| Others | ||
| 360° projection | Yes | |
| Edge Blending | Yes | |
| Adjustable brightness | Yes | |
| Lens position memory, lens locking function | Yes | |
| Closed dustproof design, free of maintenance and replacement of the filter screen | Yes | |
| DMX512 | Yes | |
| Timing function | Yes | |
| Safety redundant circuit | Yes | |
| Dynamic power control specifications | Yes | |
| Dimension&Weight | ||
| Product size (WxHxD mm) | 655*311*664 | |
| Net. Weight (KG) | 38.7KG | |
| Packaging Size (WxHxD mm) | 810*741*442 | |
| Gross. Weight (KG) | 46KG | |
| Accessory | ||
| Manual Languages | Chinese, English | |
| Standard Accessories | Power cord(3m,Black), Remote control | |
| Packing | Carton(Standard)/ Flight Case | |
| Optional Lenses | |||||||
| Model No. | MX-EG05ZLM | MX-EG06ZLM | MX-EG08ZLM | MX-EG12ZLM | MX-EG20ZL | MX-EG39ZLM | |
| Image circle | Φ34.6 | Φ35.5 | Φ37.9 | Φ37.9 | Φ37.9 | Φ37.9 | |
| Lens Type | Zoom Lens ST3 | Zoom Lens ST2 | Zoom Lens ST1 | Zoom Lens STD | Zoom Lens L1 | Zoom Lens L2 | |
| Zoom/Focus | Motorized | Motorized | Motorized | Motorized | Motorized | Motorized | |
| F#(Wide-Tele) | 1.94 - 2.20 | 1.84 - 2.25 | 1.80-2.24 | 1.80-2.24 | 1.84-2.58 | 1.85 - 2.41 | |
| f(mm) | 12.0 - 14.6 | 14.4 - 19.1 | 19.0-27.6 | 27.7-44.3 | 43.8-86.0 | 86.2 - 164.8 | |
| Throw ratio(16:10) | 0.53-0.65 | 0.65-0.87 | 0.86-1.25 | 1.24-2.01 | 1.98-3.95 | 3.95-7.51 | |
| Zoom Ratio | 1.23 | 1.34 | 1.45 | 1.62 | 1.99 | 1.9 | |
| Lens shift | H | ±20% | ±20% | ±25% | ±25% | ±25% | ±25% |
| V | ±50% | ±55% | ±65% | ±65% | ±65% | ±65% | |
| Screen Size | 60-500inch | 60-500inch | 60-500inch | 60-500inch | 60-500inch | 60-500inch | |
| Weight(Kg) ±0.2kg | 5.30 | 5.15 | 5.05 | 4.10 | 4.95 | 4.55 | |
