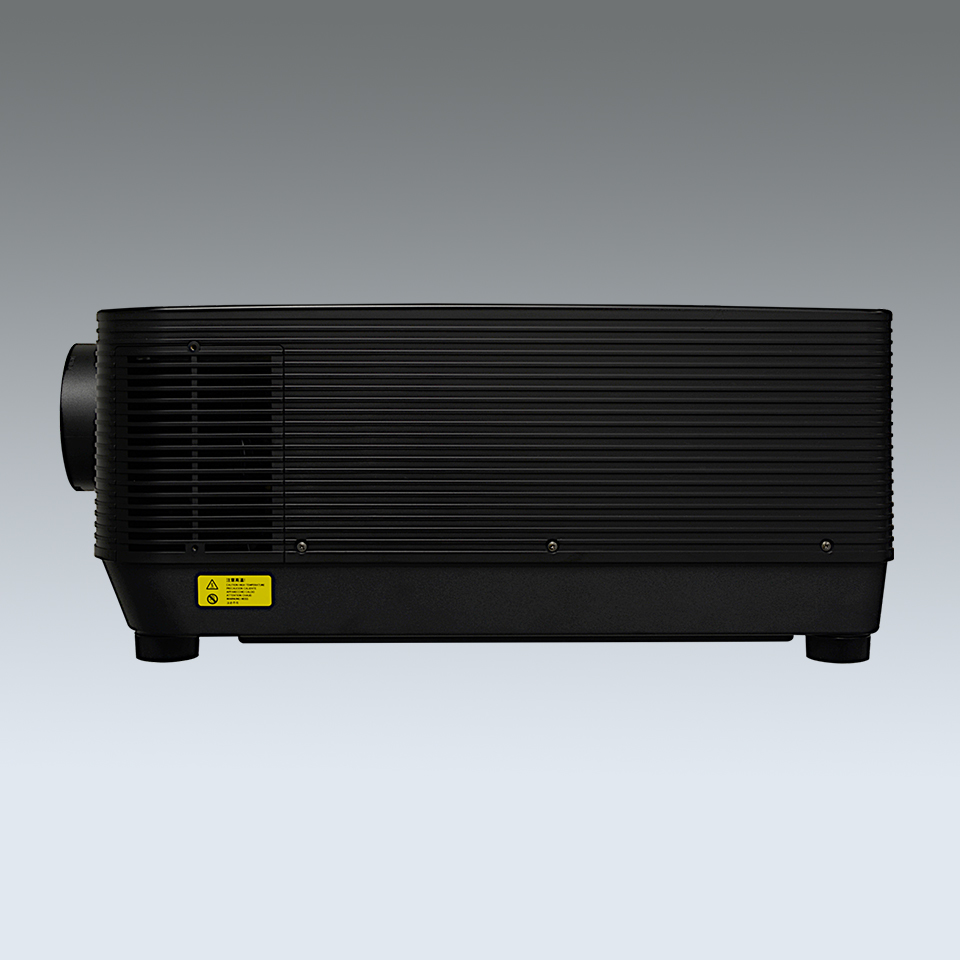

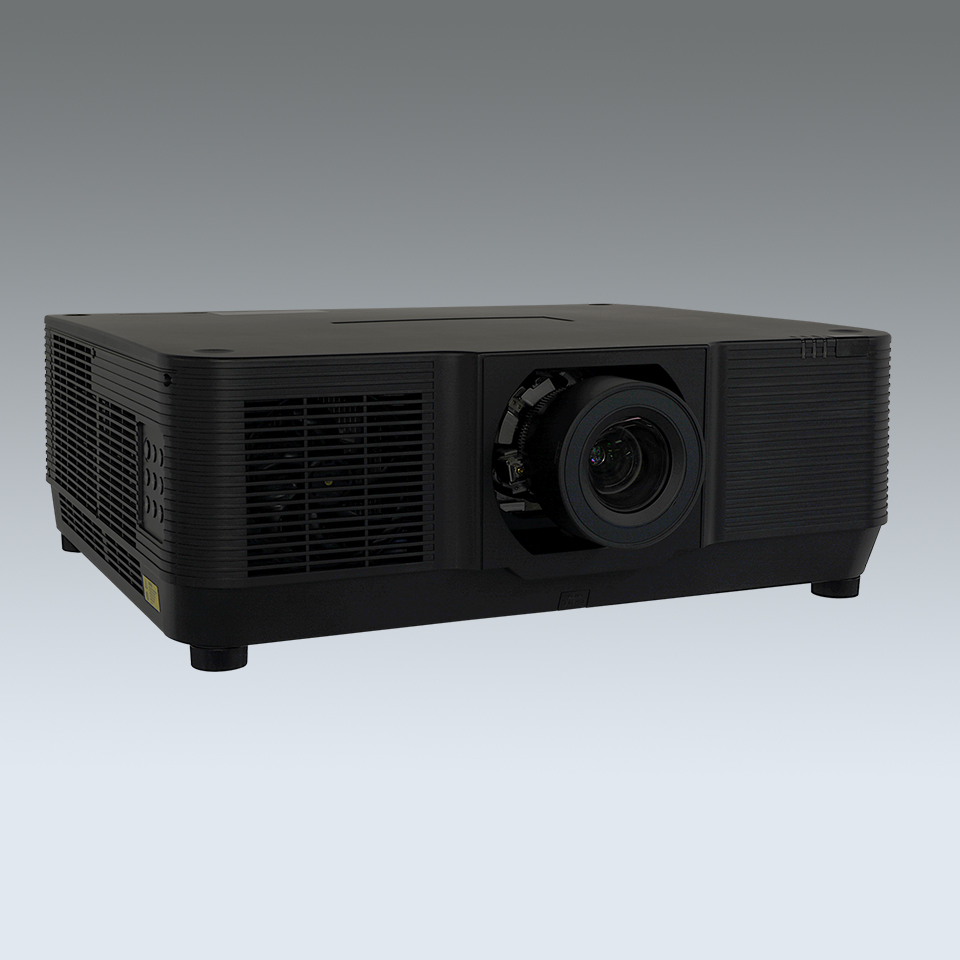

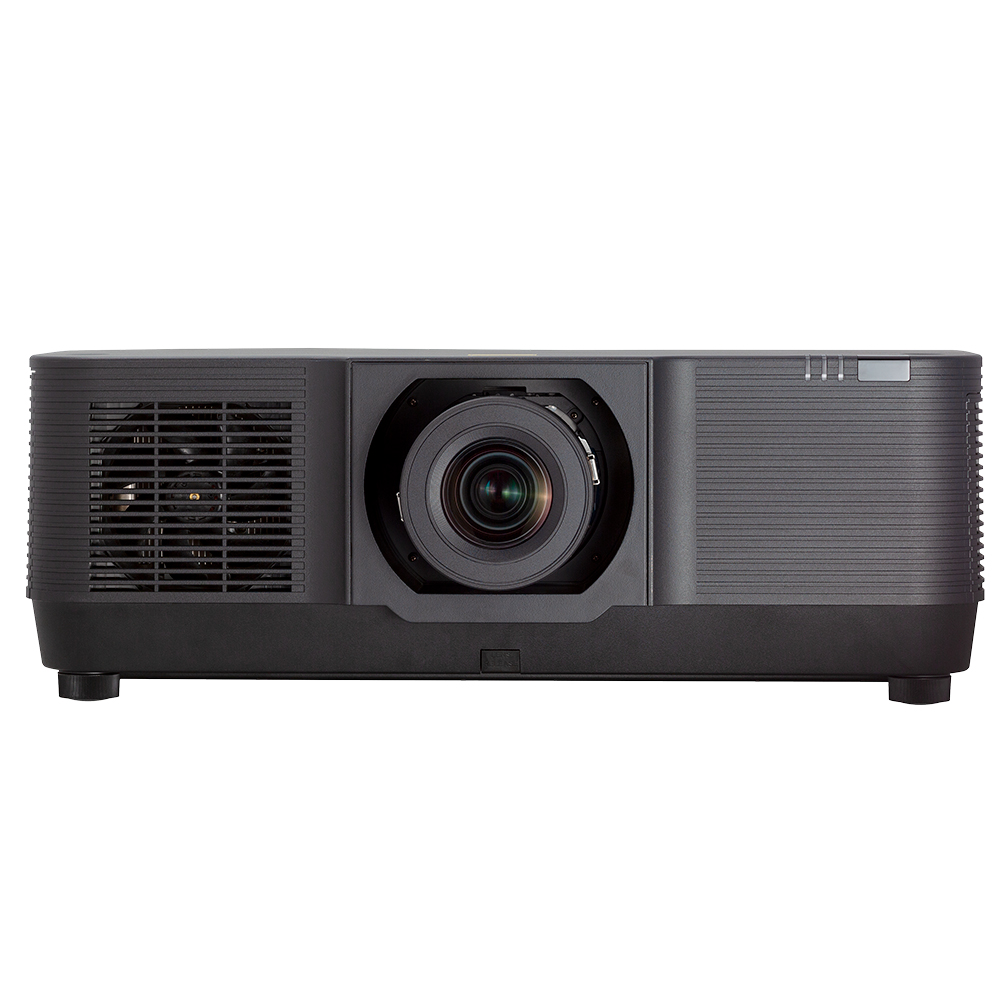

14000 Lumen Large Class 3LCD Laser Projector with WUXGA Resolution

Availability:
Quantity:
Inquire Add to Basket

  • MX-E1400U

  • SMX

SMXSMX's 3LCD laser light source MX-E1400Ua versatile, low maintenance, Large Venueprojector.This model offers high brightness andhigh color reproduction with the new3LCD and laser light optical engine.


E1400UNewly designed cooling system withsealed optical engine and filter-lessdesign provides high performance andlow fan noise.


MX-E1400U is a versatile installationprojector with advanced keystonecorrection (4-comer, 6-comer), full360° installation capability includingportrait mode and a full suite ofoptional lenses.


Key Features30,000 hour Light Source Life


  • 5000,000:1 Contrast ratio

  • 3LCD+Laser Optical Engine

  • Supports 4K input

  • Flexible Installation:

      - 360° free orientation

      - Portrait Projection mode

      - Pin / Barrel Correction

      - Lens Shift V: +50~-10% H: +/- 20% (AH-EC21020)

      - Keystone Correction V/H:+/-30°

      - 4 Comer, 6 Comer

  • 5 Optional LensesSealed Optical Engine, no filterTotally



Model

ModelMX-E1400U
Brightness

Brightness
(Lumens )		14000lumen
Light source Laser
Overall Spec
PanelDisplay Panel3x0.76"
Display TechnologyLiquid Crystal Display
Native ResolutionWUXGA (1920 x 1200)
Light source Life timeNormal mode 20000hrs
ECO mode 20000hrs
Projection LensLen TypeZoom Lens
Zoom/FocusManual(Standard Len, more lens pls check the   len sheet)
Throw Ratio（16：10）1.46-2.95
F#(Wide-Tele)1.7~2.37
f(mm)24.4-48.6
Zoom Ratio2
Screen size50-500 inch
WeightApprox 0.8kg
Lens Shift V+50%，-10%
Lens Shift H±20%
CRContrast Ratio(Min)100000:1
NoiseNoise(dB)Normal(90%): 35dB
ECO1(75% ): 32dB
ECO2(45% ): 32dB
UniformityUniformity(Actual Min)
-JISX6911 		80%
ARAspect RatioNative:16:10
Compatible: 4:3/16:9/normal

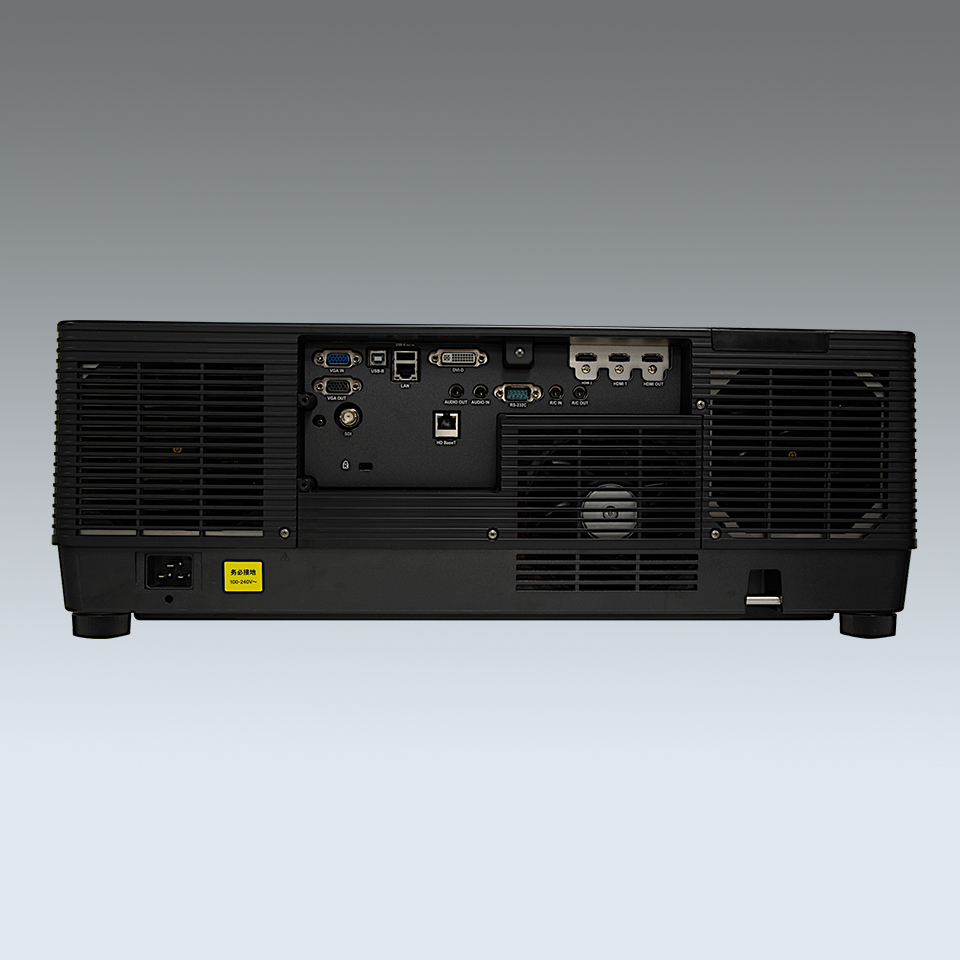

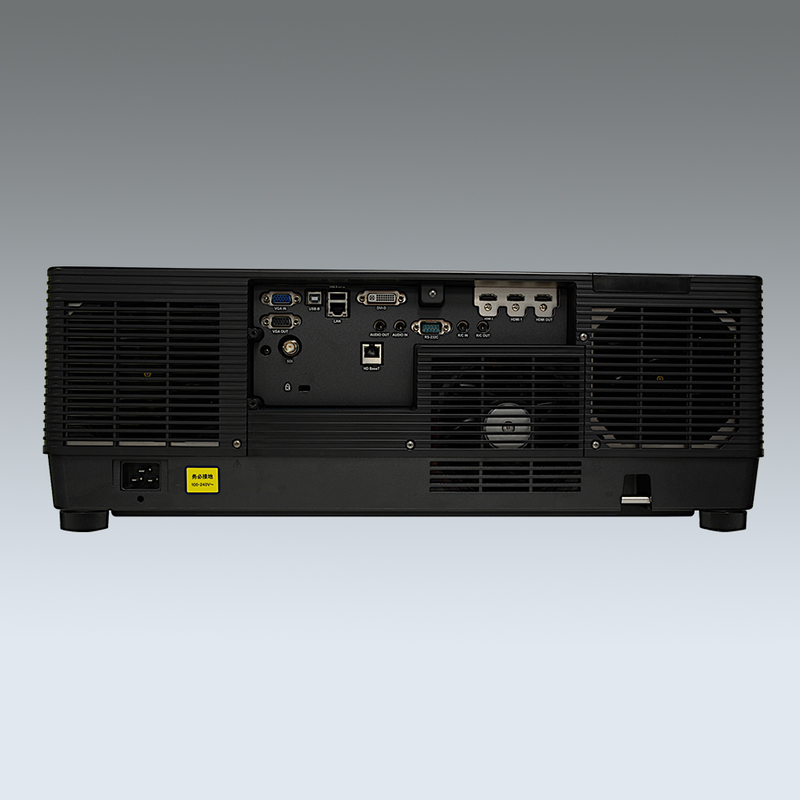

Terminal(I/O port)
InputVGA*1
HDMI 1.4(IN)*2
USB-A*1（5V/1.5A)
USB-B*1（Display）
RJ45*1（Display）
DVI-D*1
HD BaseT*1
HD-SDI(3G-SDI)Optional

Audio in

(mini jack,3.5mm）

*1 (VGA/DVI-D share)
OutputVGA*1
HDMI 1.4(OUT)*1
Audio out
(mini-jack,3.5mm）		*1
ControlRS232*1
RJ45*1 (Control)
USB-B*1 (For upgrade)
Wired Remote(IN)*1
Wired Remote(OUT)*1
General Spec
AudioSpeakerN/A
CoolingDust filter freeClosed internal circulation design
Power ConsumptionPower Requeirements100~240V@ 50/60Hz

Power Consumption

(Boost) (Max)

850
Power Consumption
(Normal) (Max)		750
Power Consumption
(ECO1) (Max)		650
Power Consumption
(ECO2) (Max)		450
ECO Standby Mode
Power Consumption		<0.5W
Temp.&HumidityOperating Temp.5 to 40°C
Operating Thumidity.20-80%
Store Temp. -10 to 50°C
Store Humidity.20-80%
Other Functions
KeystoneKeystone CorrectionV: ±30°
H: ±30°
Pincushion/Barrel Correction
6 Corner Geometry correction
Grid ImageTune correction
OSD Languages26 languages: English, German, French, Italian, Spanish, Polish,   Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese,   Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian,   Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi
LAN ControlLAN Control-RoomView
(Crestron)		Yes
LAN Control-AMX DiscoveryYes
LAN Control-PJ Link Yes
Scanning FrequencyH-Synch Range15~100KHz
V-Synch Range24~85Hz
Display ResolutionComputer Signal InputVGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA, 4K@30Hz
Video Signal Input480i, 480p, 576i, 576p, 720p, 1080i and 1080p
SW settingAuto SetupINPUT SEARCH,AUTO PC,
Blank Yes
SuspendYes(5miniutes no   singnal as default)
Picture modeDynamic，Standard，Cinema，Colorboard，DICOM,blackboard（green）
Cooling time0s,30s,Normal
High altitude Yes(1400~3650m)
Auto CeilingYes
D-Zoom1~33
Others 360° projection360° omnibearing installation
Edge BlendingYes
Dimension&Weight

MAX Dimensions
(WxHxD mm)		600*218*503
Net. Weight (KG)~25kg
Packaging Box Dimensions
(WxHxD mm)		725*622*350
Gross. Weight (KG)~29.5kg
Accessory

Manual LanguagesChinese,English
Standard AccessariesPower cord(3m,Black), Remote control


download MX-E1400U.pdf
