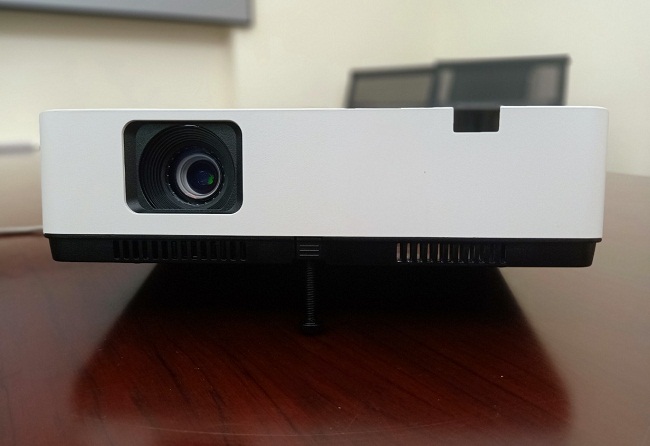

MX-LS4300X
SMX
MX-LS4300X
Resolution XGA up to WUXGA
Brightness 4300 lm
Contrast 15,000:1
Lamp up to 20,000 Hours
Outstanding Performance in a Compact Body
High Brightness, Contrast ratio, display Color Brightness can reach up to 4300 lumens, This series is completely equipped with 15000:1 ratio, high color display 1.07 Billion . Even in standard daylight classroom & meeting rooms, presentation brightness is guaranteed to deliver vivid moving colors. High quality long life lamps. These series delivers well engineered lamp type that could last up to 20,000 hours. Effectively reduce extra maintenance cost on lamp replacements. Zero second Flash start & shut mode kills waiting time and more business matters. The series comes with short circuit protection feature that anticipate unexpected power cut. Given this ability, it protects expensive components boards and lamp safety. The Keystone correction feature allow image to merge to scale onto any projector screen. Auto sensing feature allow ceiling hanged projector to auto flipped a direct display. It provide no setup or any prior installation knowledge. | Multiple inputs feature 2 * sets HDMI, 1 * sets VGA inputs, USB – A USB-B, VIDEO input. Across all format and platforms, users of any setup can install with ease. With a USB-A input, can read the data from the USB disk directly, USB-B support wireless connection with projection equipment. Design with ceiling installation in mind, projector Users without much training could replace the lamp or filter in a snap. Maintenance can be more regular and with ease by any facility officers. Through RJ45 Internet access, you could get access to your projector. Projector allows status notifications in any unexpected events. It is ready to send an email to notify you of any maintenance care it required. Projectors is built to mix with its class of equipment. It support PJLINK, CRESTRON-ROOMVIEW, and AMX-DISCOVERY via internet command systems. Its blends into system and work seamlessly with other brands projectors. Equipped with high efficient electrostatic dusting functions within the projector, it keeps the LCDs and lenses dust free from any environment. |
MX-LS4300X
Resolution XGA up to WUXGA
Brightness 4300 lm
Contrast 15,000:1
Lamp up to 20,000 Hours
Outstanding Performance in a Compact Body
High Brightness, Contrast ratio, display Color Brightness can reach up to 4300 lumens, This series is completely equipped with 15000:1 ratio, high color display 1.07 Billion . Even in standard daylight classroom & meeting rooms, presentation brightness is guaranteed to deliver vivid moving colors. High quality long life lamps. These series delivers well engineered lamp type that could last up to 20,000 hours. Effectively reduce extra maintenance cost on lamp replacements. Zero second Flash start & shut mode kills waiting time and more business matters. The series comes with short circuit protection feature that anticipate unexpected power cut. Given this ability, it protects expensive components boards and lamp safety. The Keystone correction feature allow image to merge to scale onto any projector screen. Auto sensing feature allow ceiling hanged projector to auto flipped a direct display. It provide no setup or any prior installation knowledge. | Multiple inputs feature 2 * sets HDMI, 1 * sets VGA inputs, USB – A USB-B, VIDEO input. Across all format and platforms, users of any setup can install with ease. With a USB-A input, can read the data from the USB disk directly, USB-B support wireless connection with projection equipment. Design with ceiling installation in mind, projector Users without much training could replace the lamp or filter in a snap. Maintenance can be more regular and with ease by any facility officers. Through RJ45 Internet access, you could get access to your projector. Projector allows status notifications in any unexpected events. It is ready to send an email to notify you of any maintenance care it required. Projectors is built to mix with its class of equipment. It support PJLINK, CRESTRON-ROOMVIEW, and AMX-DISCOVERY via internet command systems. Its blends into system and work seamlessly with other brands projectors. Equipped with high efficient electrostatic dusting functions within the projector, it keeps the LCDs and lenses dust free from any environment. |
Model | MX-LS4300X | ||
Display Technology | (Liquid Crystal Display) LCD panel (x 3, R/G/B) | ||
LCD Panels | SONY 3*0.63 | ||
Brightness | 4300 lumens | ||
Resolution | XGA (1024*768) | ||
Contrast | 15000:1 | ||
Lens | F1.6~1.76, f=19.158~23.018mm (1.2x) optical zoom | ||
Uniformity | 90% | ||
Throw ratio | 1.48~1.78:1 (70" @ 2.1m) | ||
Aspect ratio | 4:3 support 16:9 | ||
Projection distance | 0.90m~11m | ||
Projection size | 30:280 inch | ||
Lamp power | 225w | ||
Lamp life | Normal 10000 hrs. Economic 20000 hrs. | ||
Input | 2*HDMI1.4, 1-VGA, 1*Audio 3.5 Mini-Jack 1*Video, USB-A (Support memory viewer/optional Wi-Fi dongle) 2-Audio-In (L/R), USB-B (Display), RJ45 (Display) | ||
Output | VGA , Audio 3.5 Mini-Jack | ||
Control | RS232, RJ45 (control), USB-B (display) | ||
PC Compatibility | VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA, Mac | ||
Video Compatibility | PAL, SECAM, NTSC 4.43, PAL-M, PAL-N, 480i, 480p, 576i, 576p, 720p, 1080p and 1080i | ||
Scanning Frequency | H: 15~100Khz , V: 48~85Hz | ||
Keystone correction | V. ±30° (Auto/Manual) H. ±30° (Manual), Pincushion/Barrel Correction, Corner Keystone | ||
Noise | 35 dB (lamp control: Normal), 30 dB (lamp control: Eco) | ||
Projection | Front, Rear, Desktop, Ceiling | ||
Speakers | 10W*1 | ||
Power Consumption | 217 Watts | ||
Power Supply | 100V - 240V @ 50 - 60Hz | ||
Operating Temp. | 0°C - 40°C (Over 35°C Go to ECO Mode) | ||
Storage Temp. | -10°C - 55°C | ||
OSD Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak, Vietnamese, Thai, Persian | ||
Dimensions | 34.5cm x 26.1cm x 9.9cm | ||
Weight | 3.26Kg | ||
Standard Accessories | Power Cord, Remote Control, VGA Cable | ||
Optional accessories | Replacement lamp module, Wi-Fi display module, HDMI cable, Screen, Bracket | ||
Other Features | One Touch Lamp Replacement Quick Power OFF Customized Startup Logo Auto Image Reverse Build in Test Images Corner Keystone | Powerful 10 Watts Speaker HDMI Compatible with MHL LAN Display PC Less Presentation Mirror Display with iOS/Android Devices Via USB Adapter Color display 1.07 Billion Carbon savings meters |
Model | MX-LS4300X | ||
Display Technology | (Liquid Crystal Display) LCD panel (x 3, R/G/B) | ||
LCD Panels | SONY 3*0.63 | ||
Brightness | 4300 lumens | ||
Resolution | XGA (1024*768) | ||
Contrast | 15000:1 | ||
Lens | F1.6~1.76, f=19.158~23.018mm (1.2x) optical zoom | ||
Uniformity | 90% | ||
Throw ratio | 1.48~1.78:1 (70" @ 2.1m) | ||
Aspect ratio | 4:3 support 16:9 | ||
Projection distance | 0.90m~11m | ||
Projection size | 30:280 inch | ||
Lamp power | 225w | ||
Lamp life | Normal 10000 hrs. Economic 20000 hrs. | ||
Input | 2*HDMI1.4, 1-VGA, 1*Audio 3.5 Mini-Jack 1*Video, USB-A (Support memory viewer/optional Wi-Fi dongle) 2-Audio-In (L/R), USB-B (Display), RJ45 (Display) | ||
Output | VGA , Audio 3.5 Mini-Jack | ||
Control | RS232, RJ45 (control), USB-B (display) | ||
PC Compatibility | VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA, Mac | ||
Video Compatibility | PAL, SECAM, NTSC 4.43, PAL-M, PAL-N, 480i, 480p, 576i, 576p, 720p, 1080p and 1080i | ||
Scanning Frequency | H: 15~100Khz , V: 48~85Hz | ||
Keystone correction | V. ±30° (Auto/Manual) H. ±30° (Manual), Pincushion/Barrel Correction, Corner Keystone | ||
Noise | 35 dB (lamp control: Normal), 30 dB (lamp control: Eco) | ||
Projection | Front, Rear, Desktop, Ceiling | ||
Speakers | 10W*1 | ||
Power Consumption | 217 Watts | ||
Power Supply | 100V - 240V @ 50 - 60Hz | ||
Operating Temp. | 0°C - 40°C (Over 35°C Go to ECO Mode) | ||
Storage Temp. | -10°C - 55°C | ||
OSD Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak, Vietnamese, Thai, Persian | ||
Dimensions | 34.5cm x 26.1cm x 9.9cm | ||
Weight | 3.26Kg | ||
Standard Accessories | Power Cord, Remote Control, VGA Cable | ||
Optional accessories | Replacement lamp module, Wi-Fi display module, HDMI cable, Screen, Bracket | ||
Other Features | One Touch Lamp Replacement Quick Power OFF Customized Startup Logo Auto Image Reverse Build in Test Images Corner Keystone | Powerful 10 Watts Speaker HDMI Compatible with MHL LAN Display PC Less Presentation Mirror Display with iOS/Android Devices Via USB Adapter Color display 1.07 Billion Carbon savings meters |
