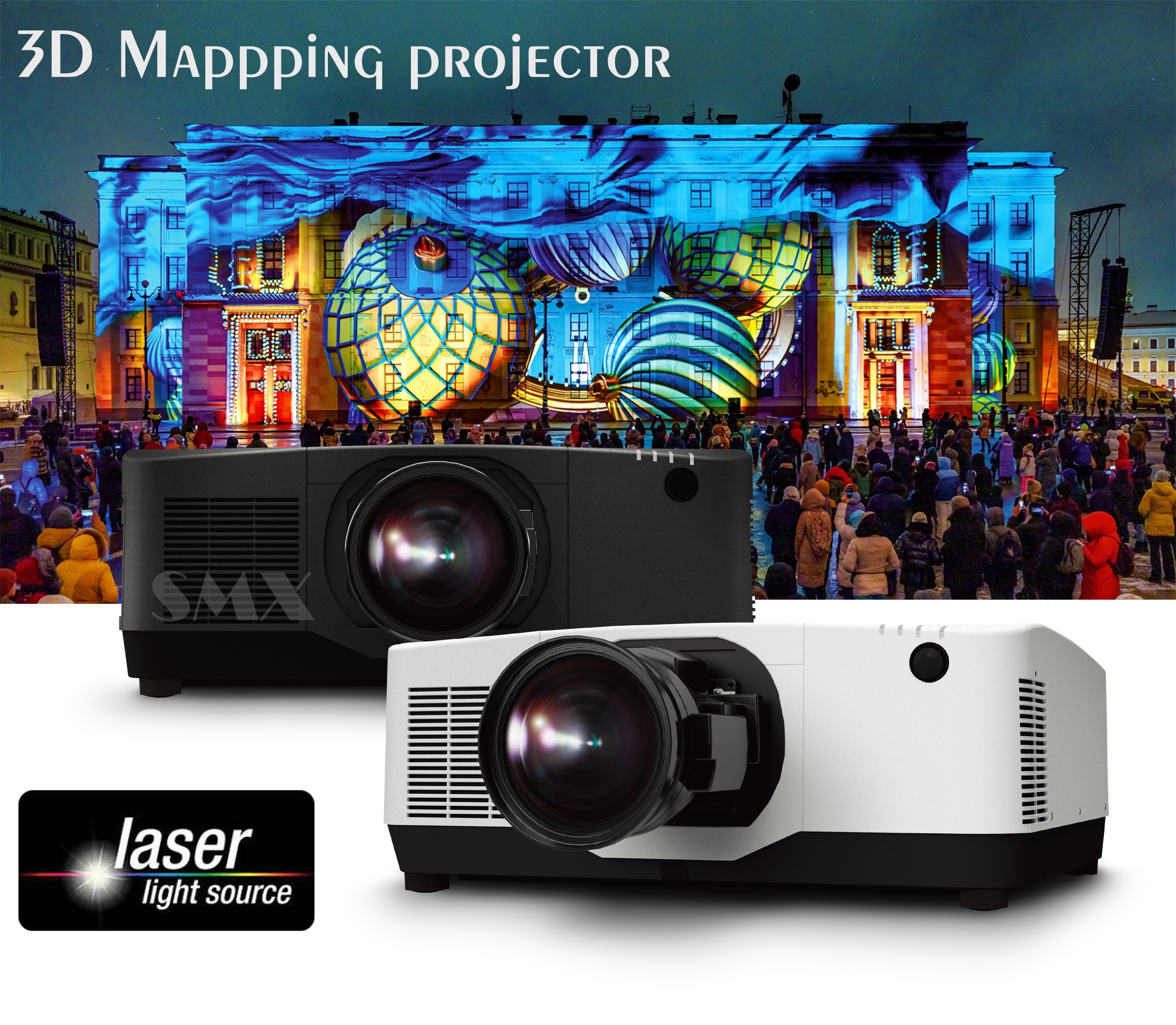

SMX High Brightness 20000 Lumen Laser Projector for 3D Mapping Outdoor Projection

SMX MX-X20000U experiences stunning visual performance with a 20,000-lumen WUXGA laser projector, designed for professional 3D mapping, large-scale projections, and immersive experiences. Engineered for exceptional brightness, superior image clarity, and long-lasting performance, this projector is the ideal solution for outdoor projections, stage performances, exhibitions, and architectural mapping.

Key Features:

• Ultra-High Brightness: 20,000 lumens ensure vivid, sharp images even in bright environments.

• WUXGA Resolution (1920 × 1200): Delivers crisp, detailed visuals with excellent color accuracy.

• Laser Light Source: Provides up to 30,000+ hours of maintenance-free operation.

• Advanced 3D Mapping Compatibility: Supports projection mapping for dynamic and immersive displays.

• High Contrast Ratio: Deep blacks and vibrant colors for enhanced image depth and realism.

• Flexible Installation: 360-degree projection capabilities for creative positioning.

• Edge Blending & Warping: Seamless multi-projector setups for large-scale projections.

• Multiple Connectivity Options: HDMI, DisplayPort, HD BaseT, and LAN for easy integration.

• Dust-Resistant Design: Engineered for reliable performance in challenging environments.

Perfect for event production, digital art installations, corporate presentations, and large-scale entertainment, this 20,000-lumen WUXGA laser projector ensures unparalleled brightness, precision, and durability for your most ambitious projection mapping projects.

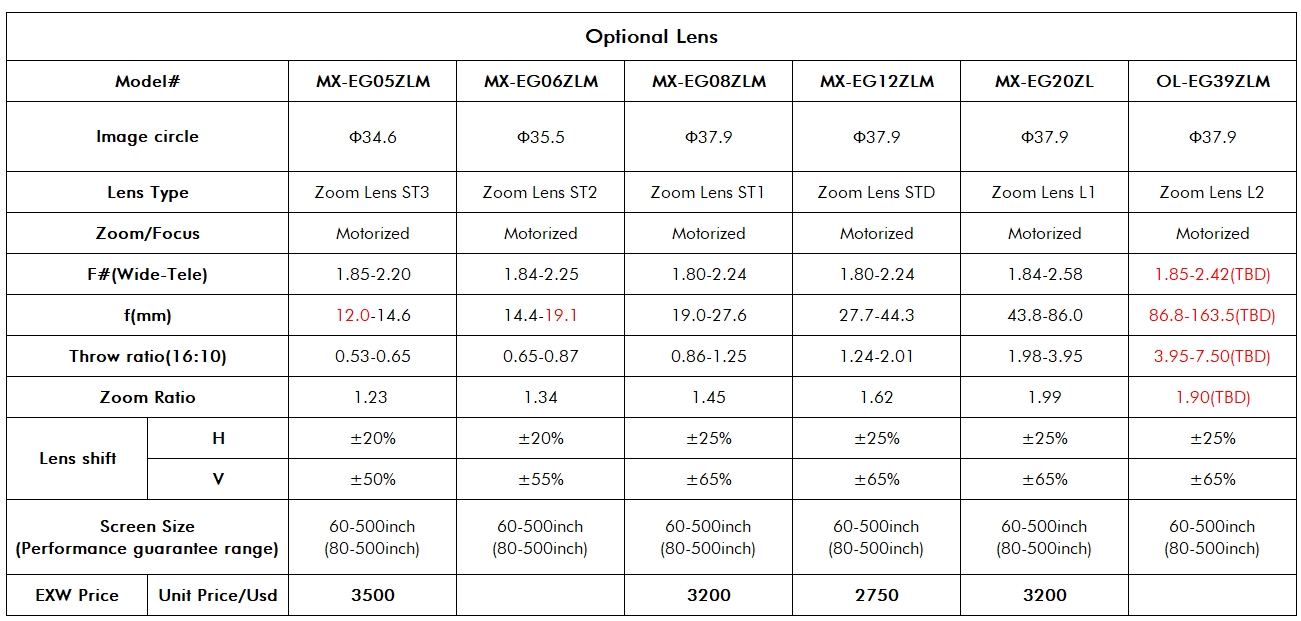

SMX MX-X20000U can be paired with 6 electric lenses with a throw ratio covering 0.53-7.5 to match different application environments.

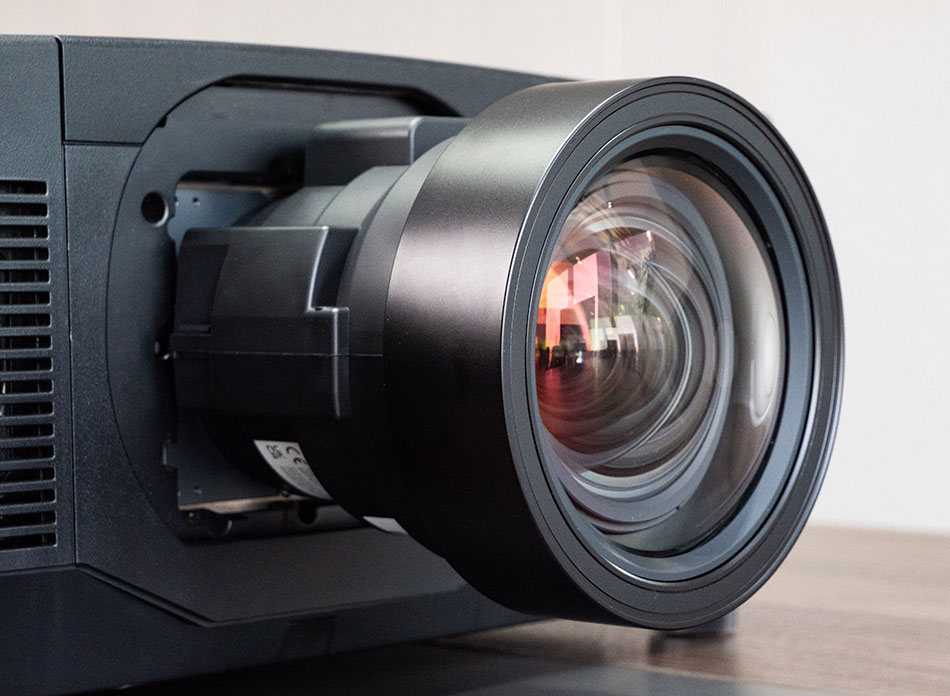

Len Shift

MX-X20000U with lens shift allows precise image adjustment without physically moving the device.

• Horizontal/Vertical Adjustment: Shift the lens position (±65% vertically, ±25% horizontally) to align the image perfectly on the screen.




• Zero Image Degradation: Unlike digital keystone correction, lens shift maintains native resolution and clarity.

• Flexible Installation: Ideal for ceiling mounts, rear projection, or uneven setups in home theaters, meeting rooms, 3d mapping.

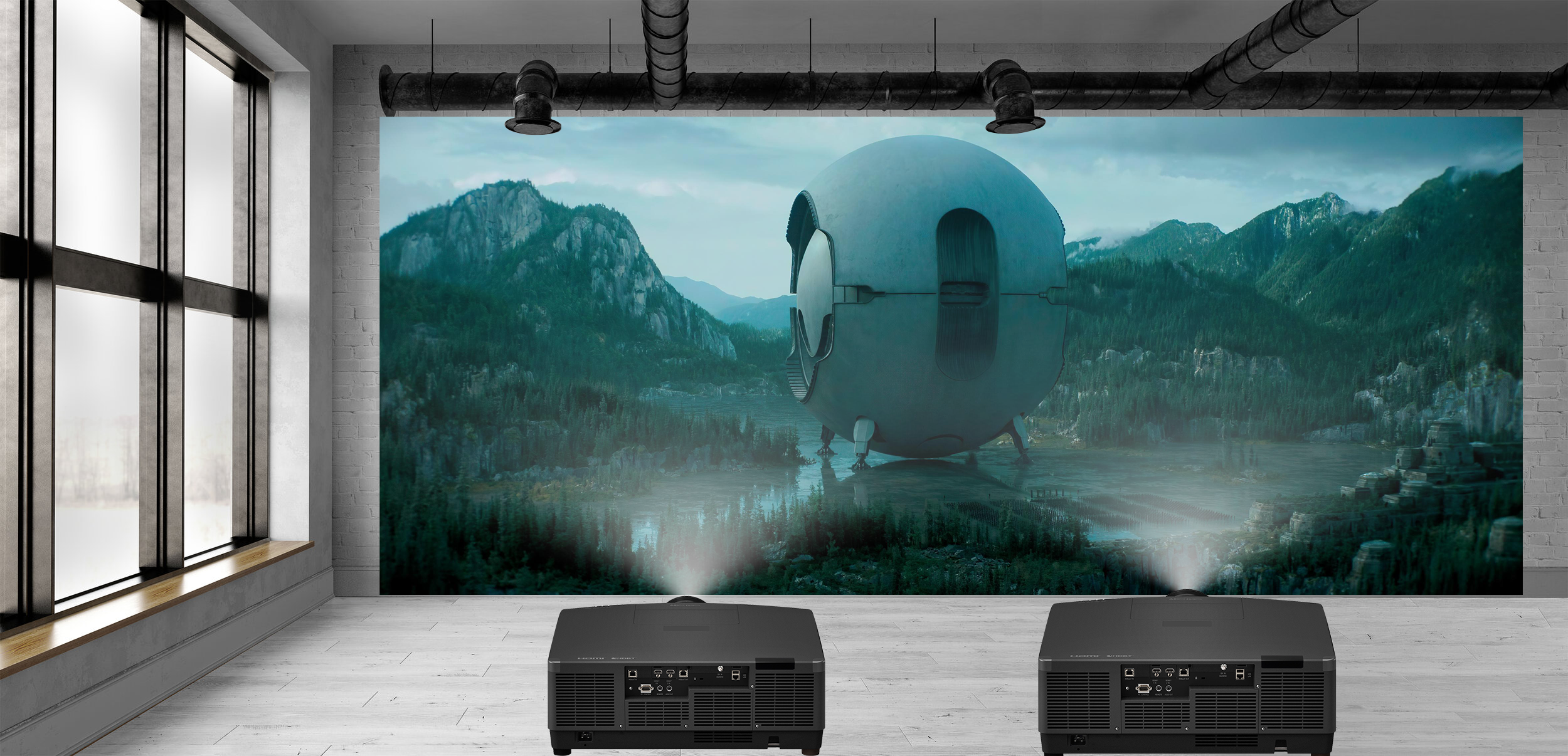

Edge Blending

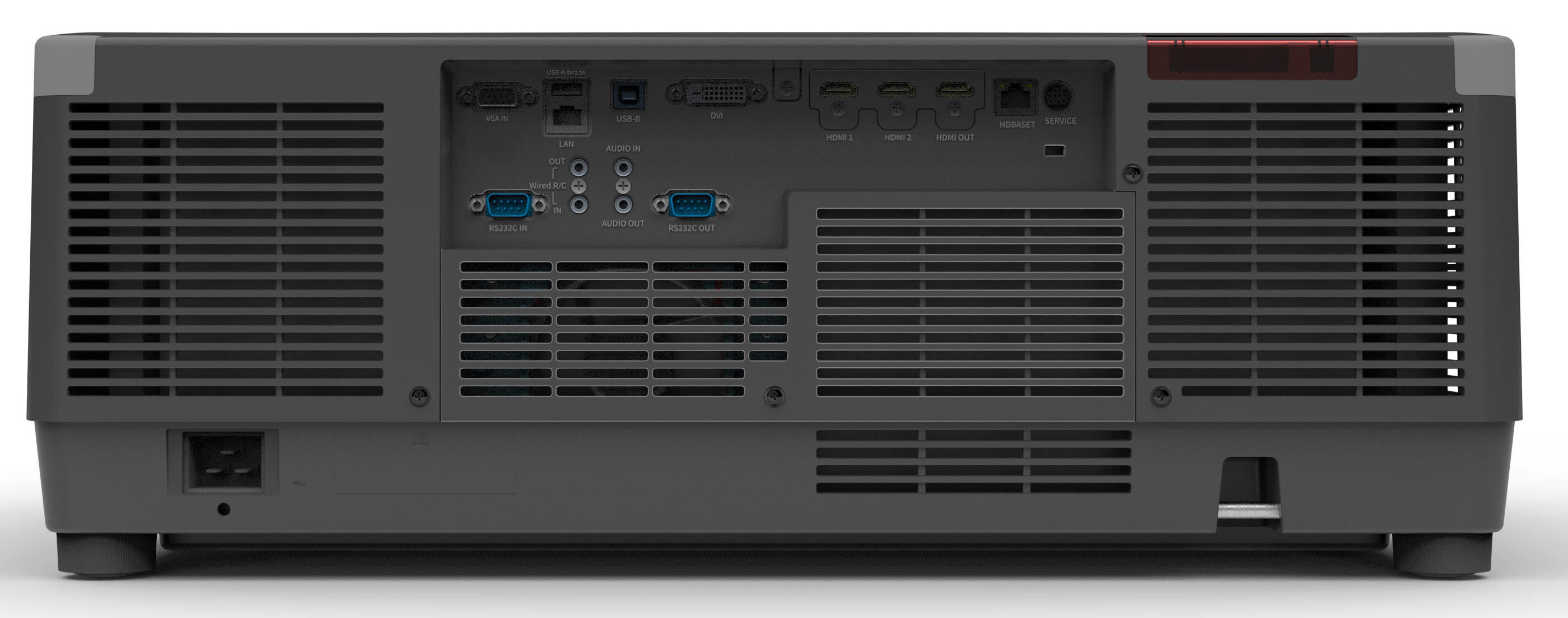

Multiple ports, flexible connection

The MX-X20000U has a very complete range of interfaces. In addition to the commonly used HDMI, SDI, HDBaseT, and RS-232, it is also equipped with an HDBaseT OUT interface. Through the HDBaseT loop-in and loop-out function, the signal with a resolution of 3840×2160 can be split into 4 1920×1080 signals, and given to 4 projectors to display their respective parts, achieving lossless display of 4K images.
