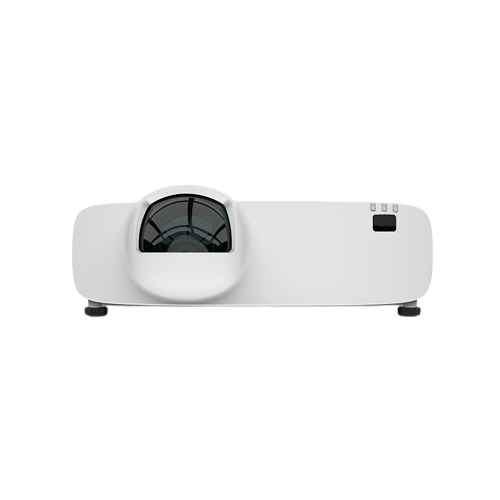

MX-ST4500U
SMX
| Model# | MX-ST4500U | |
| Resolution | WUXGA(1920x1200) | |
| Key parts | ||
| Panel | SONY 0.64" | |
| Lens Maker | RICOH Lens | |
| Throw Ratio | 0.44:1 | |
| Zoom Ratio | N/A | |
| Lens Shift | N/A | |
| Light source | NICHIA LASER | |
| Light source | NICHIA LASER | |
| ISO21118 | Brightness --MKT | 4500 |
| Brightness --TYP | 4050 | |
| Brightness --MIN | 3600 | |
| Overall Spec | ||
| Light source Life time | FullNirmal/Normal mode | 20000hrs |
| ECO1 mode | 30000hrs(TBD) | |
| ECO2 mode | TBD | |
| Projection Lens | Lens Vendor | RICOH |
| F | 1.6 | |
| f | 6.39mm | |
| Zoom/Focus | Manual | |
| Throw Ratio | 0.44:1 | |
| Zoom Ratio | N/A | |
| Screen size | 55-130 inch | |
| Lens Shift | N/A | |
| CR | Dynamic Contrast Ratio (FOFO) | 5000,000:1 |
| Native Contrast Ratio （FOFO) | 350:1(Min) | |
| Noise | Noise(dB) | TGT: 37dB(Normal) 27dB(ECO1） |
| Uniformity | Uniformity(Actual Min) -ISO21118 | 80% |
| AR | Aspect Ratio | Native:16:10 Compatible: 4:3/16:9 |
| Terminal(I/O port) | ||
| Input | VGA | *1 |
| HDMI | *2 | |
| Video | *1 | |
| Audio in (mini jack,3.5mm) | *1 | |
| Audio in (RCA×2) <Audio L/R> | *1 | |
| USB-A | *1 | |
| USB-B | *1(Display) | |
| RJ45 | *1(Display) | |
| YCbCr/Component | N/A | |
| S-Video | N/A | |
| Output | VGA | *1 |
| Audio out (mini-jack,3.5mm) | *1 | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| USB-B | *1 | |
| LAN | *1 | |
| General Spec | ||
| Audio | Speaker | 16W*1 |
| Dust filter | W/Filter | |
| Filter Life time | 7300h(TBD) | |
| Power Consumption | Power Requeirements | 100~240V@ 50/60Hz |
| Power Consumption (Normal) (Max) | TBD | |
| Power Consumption (ECO1) (Max) | TBD | |
| Power Consumption (ECO2) (Max) | TBD | |
| ECO Standby Mode Power Consumption | <0.5W | |
| Temp.&Humidity | Operating Temp. | 5 to 40deg.C |
| Operating Thumidity. | 20-80% | |
| Storage Temp. | -10 to 50°C | |
| Storage Thumidity. | 10-85% | |
| High altitude | 1700-3000m | |
| Other Functions | ||
| Keystone | Keystone Correction (Lens@center) | V: ±15° H: ±15° Pincushion/Barrel Correction 4 corner 6 Corner Geometry correction Grid image tune |
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi |
| LAN Control | LAN Control-RoomView (Crestron) | Yes |
| LAN Control-- AMX Discovery | Yes | |
| LAN Control-- PJ Link | Yes | |
| Scanning Frequency | H-Synch Range | 15~100KHz |
| V-Synch Range | 24~85Hz | |
| Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz |
| Video Signal Input | 480i, 480p, 576i, 576p, 720p, 1080i and 1080p | |
| SW setting | Auto Setup | INPUT SEARCH,AUTO PC,Auto Keystone |
| Blank | Yes | |
| Suspend | Yes(5miniutes no singnal as default) | |
| Picture mode | Dynamic, Standard, Cinema, Colorboard, Blackboard(Green) | |
| Cooling time | 5s | |
| Closed caption | Yes | |
| Auto Ceiling | Yes | |
| D-Zoom | 1~19 | |
| Others | 360° projection | Yes |
| Wireless display (Optional function) | SmartPhone: Android：Install APK for Android iphone: Airplay function PC: Support WiFi Display@Windows&MAC system through dongle | |
| Dimension&Weight | ||
| MAX Dimensions (WxDxH mm) | 390*319*143; With lens protrusion | |
| Net. Weight (KG) | 5.5Kg | |
| Packaging Box Dimensions (WxDxH mm) | 492*443*239 | |
| Gross. Weight (KG) | ~7Kg | |
| Accessory | ||
| Manual Languages | Chinese,English | |
| Standard Accessaries | Power cord Remote control&RC Battery | |
| Regulation List | ||
| China | CCC | √ |
| CECP | X | |
| Power Rules (2016/10-)-CEL | X | |
| WW | CB | √ |
| US | cTUVus | X |
| FCC | X | |
| FDA | X | |
| EU | CE-EMC | X |
| CE-LVD | X | |
| CE-ERP | X | |
| IEC60825-1:2007 | class1 | X |
| EMC Class | ||
| EMC Class | Class B@3dBm | |
