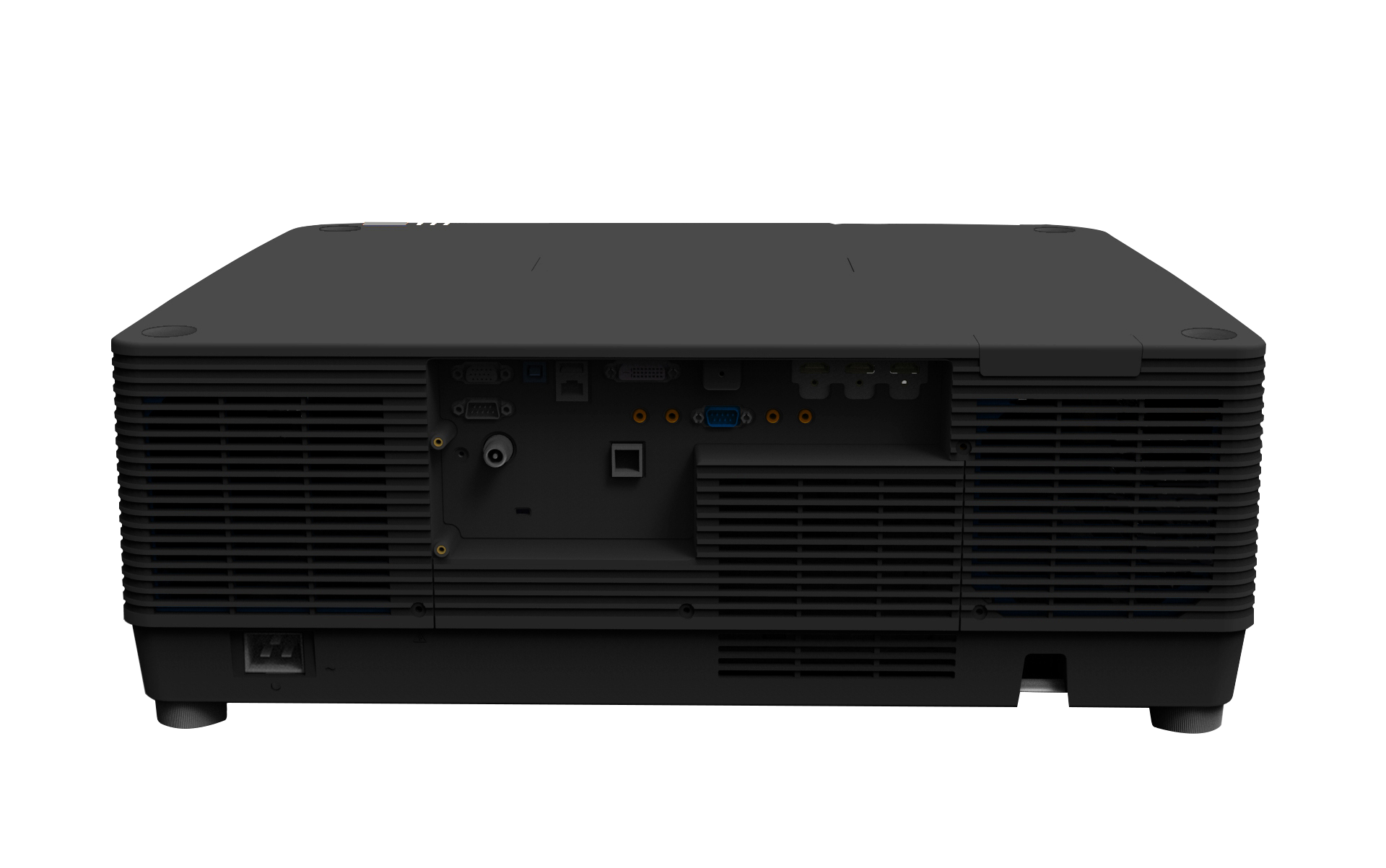

4K High Resolution LCD Laser Projectors 12000 Lumen Projector

Laser Projector
12000 Lumen
100000:1
20000hrs
16:10 /4:3/16:9
Availability:
Quantity:
  • MX-X12000U
  • SMX

ModelMX-X12000U
Key parts

PJ Lensoptional
Light source Laser
MainchipTopaz Prime PWC895
Sony ICCXD3553+CXA3832(1+3)
Brightness

Brightness
( Ansi Lumens )
12000lumen
Overall Spec
PanelDisplay Panel3x0.76"
Display TechnologyLiquid Crystal Display
Native ResolutionWUXGA (1920 x 1200)
Light source
    Life time
Normal mode 20000hrs
ECO mode 20000hrs
Projection LensZoom/FocusPowered
Throw Ratio(16:10) 1.30-3.02
FF1.7~2.0
f 21.8-49.8
Zoom   Ratio‘2.3
Screen size
(Performance guarantee range)

50-500 inch

(80-200 inch)

Lens Shift V+50%,-10%
Lens Shift H±20%
CRContrast Ratio(Min)100000:1
NoiseNoise(dB)Normal(90%): 35dB
    ECO1(75% ): 32dB
    ECO2(45% ): 32dB
UniformityUniformity(Actual Min)
    -JISX6911
80%
ARAspect RatioNative:16:10 Compatible: 4:3/16:9/normal
Terminal(I/O port)
InputVGA*1
HDMI 1.4(IN)*2
USB-A*1(5V/1.5A)
USB-B*1(Display)
RJ45*1(Display)
DVI-D*1
HD BaseT*1
HD-SDI(3G-SDI)Optional
VideoN/A
Audio in
    (mini jack,3.5mm)
*1 (VGA/DVI-D share)
OutputVGA*1
HDMI 1.4(OUT)*1
Audio out
    (mini-jack,3.5mm)
*1
ControlRS232*1
RJ45*1 (Control)
USB-B*1 (For upgrade)
Wired Remote(IN)*1
Wired Remote(OUT)*1
General Spec
AudioSpeakerN/A
CoolingDust filter freeClosed internal circulation design
Power ConsumptionPower Requeirements100~240V@ 50/60Hz
Power Consumption
    (Boost) (Max)
850
Power Consumption
    (Normal) (Max)
750
Power Consumption
    (ECO1) (Max)
650
Power Consumption
    (ECO2) (Max)
450
ECO Standby Mode
    Power Consumption
<0.5W
Temp.&HumidityOperating Temp.5 to 40°C
Operating Thumidity.20-80%
Store Temp.‘-10 to 50°C
Store Humidity.20-80%
Other Functions
KeystoneKeystone CorrectionV: ±30°
    H: ±30°
    Pincushion/Barrel Correction
    6 Corner Geometry correction
    Grid ImageTune correction
OSD Languages26 languages: English, German, French, Italian, Spanish, Polish,   Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese,   Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian,   Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi
LAN ControlLAN Control-RoomView
    (Crestron)
Yes
LAN Control-AMX DiscoveryYes
LAN Control-PJ Link Yes
Scanning FrequencyH-Synch Range15~100KHz
V-Synch Range24~85Hz
Display ResolutionComputer Signal InputVGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz
Video Signal Input480i, 480p, 576i, 576p, 720p, 1080i and 1080p
SW settingAuto SetupINPUT SEARCH,AUTO PC,
Blank Yes
SuspendYes(5miniutes no   singnal as default)
Picture modeDynamic,Standard,Cinema,Colorboard,DICOM,blackboard(green)
Cooling time0s,30s,Normal
Closed captionN/A
High altitude Yes(1400~3650m)
Auto CeilingYes
D-Zoom1~33
Others 360° projection360° omnibearing installation
Edge BlendingYes
Dimension&Weight

MAX Dimensions
    (WxHxD mm)
600*218*503
Net. Weight (KG)~24kg
Packaging Box Dimensions
    (WxHxD mm)
725*622*350
Gross. Weight (KG)~28.5kg
Accessory

Manual LanguagesChinese,English
Standard AccessariesPower cord(3m,Black),
Remote control&RC Battery
Remote controller
Regulation List
ChinaCCC
WWCB
UScTUVus,FCC,FDA
EUCE-EMC, CE-LVD, CE-ERP
EMC Class

EMC ClassClass A@3dBm


Model MXL7100SZ MXL7100LZ MXL7100TZ MXL7100FR O%9RPJPXH(9`PB)BTB9J
Description short   throw zoom Long   throw lens Tele   throw zoom lens Fixed   focal rear lens
Zoom/Focus x1.3/power x1.36/power x1.36/power Fixed/power
Focus length 19.30-24.9 45.6-73.8 70.3-119.5 12.4
F value 2.0-2.6 2.2-2.8 2.2-2.8 1.8
Throw ration 1.2-1.5:1 2.6-4.4:1 4.3-7.3:1 0.8:1
100"@2.4-3.1m 100"@5.3-9m 100"@8.8-15.1m 100"@1.6m



Model# OL-MX13ZL OL-MX15ZL OL-MX40ZLM OL-MX41ZLM OL-MX43ZLM OL-MX50SLM
P/N (lens) 240005300 240005500 240005600 240005700 240005800 240007100
Image   7MKHRYQI%DPVX`YUBCWA 3 4 5 6 7
Lens Type Zoom Lens Zoom Lens Zoom Lens Zoom Lens Zoom Lens Zoom Lens
Zoom/Focus Manual Manual Motorized Motorized Motorized Motorized
F#(Wide-Tele) 1.7-2.37 2.2-2.7 2.0-2.5 1.7-2.0 2.2-2.6 1.9-2.1
f(mm) 24.4-48.6 76.6-116.5 13.3-18.6 21.8-49.8 49.7-99.8
Throw   ratio(16:10) 1.46-2.95 4.59-7.02 0.79-1.11 1.30-3.02 2.99-5.93 0.6-0.75
Zoom Ratio 2 1.52 1.4 2.3 2.0 1.3
Screen Size
    (Performance guarantee range)
40-500 inch
    (40-200 inch)
60-500 inch
    (80-200 inch)
50-500 inch
    (80-200 inch)
50-500 inch
    (80-200 inch)
50-500   inch
    (80-200 inch)
60-500   inch
    (80-200 inch)
Weight approx.0.8kg approx.1.0kg approx.1.63kg approx.1.8kg approx.1.8kg

MXstandard(2)-Manual

MXStandard(1)-
